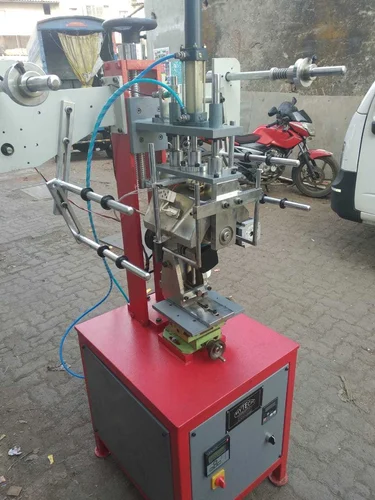

Dancing Hot Foil Printing Machine For squre ,Round
| Machine Dimension | 72 x 24 x 20 inch ( H x D x W ) |
| Power Requirement | 5 kW, 230 V, 50 Hz |
| Net Weight | 250 Kg |
| Printing Output | 30-60 pcs/min |
| Printing Dimension | 8 x 8 inch ( D x H ) |
| Stamping Temperature | 50 - 300 Deg C |
| Printing Pressure | 150 Kgf |
| Power Consumption | 3.73 kW |
| Minimum Order Quantity | 1 No |
Feature
| Machine Dimension | 72 x 24 x 20 inch ( H x D x W ) |
| Power Requirement | 5 kW, 230 V, 50 Hz |
| Net Weight | 250 Kg |
| Printing Output | 30-60 pcs/min |
| Printing Dimension | 8 x 8 inch ( D x H ) |
| Stamping Temperature | 50 - 300 Deg C |
| Printing Pressure | 150 Kgf |
| Power Consumption | 3.73 kW |
| Minimum Order Quantity | 1 No |
Description
Product Details:
Hytech engineers specialize in the design and production of hot foil stamping machine & heat transfer foil decorating machines. We have a broad range of performance-oriented hot stamping machines.
The machine is a PLC operated machine having high-class automation & latest technology for Hot Foil Stamping. It uses a heated roller to apply decorative foil to square & round surfaces. This machine had wide acceptance in the household, cap & closer, kids products, round containers, pet/jar/bottle, cosmetic, pharmaceutical and stationary decoration printing industries.
This machine is a single mandrel machine and works up to 30-60 piece per minute* when coupled with automatic feeding and ejection system. The product can be even loaded manually and automatically ejected after the printing cycle.
A wide range of part sizes can be accommodated and the starting position of the product can be set precisely as desired.
This machine provides brilliant, multi-colored graphics & impressive looks.
Key Features:
The machine is known for the high performance, simple operation and low maintenance.
Overall power consumption is up to 40% less, related to Conventional machines.
Precise foil advance system which can be adjusted to enable the operator to locate the foil at the correct position.
Operator-friendly graphical display for rapid parameter adjustment.
Front panel speedy control to set ideal head travel speeds, stamping pressure, and foil stripping condition.
Convenient and easy stroke length adjustment for rapid setup.
Accurate, repeatable cycling for minimal foil waste.
Optimum Performance and Transfer Quality from job to job.
Special provision is made to avoid damage of silicone roller in case of power failure.
Optional Attachments:
A semi-automatic part loading system
A fully automatic part loading system
Semi-automatic ejecting system
Fully automatic ejecting system
Image / Dot sensor for foil
Vacuum Pump for holding the product
Auto Blow Ejecting System
Related Products
MS Semi Automatic Screen Printing Machine
SEMI AUTOMATIC SCREEN PRINTING MACHINE&...
Heat Transfer hot foil stamping Machine For Switch
We offer Heat Transfer Printing Ma...
Foil Printing Machine For Round Job
Product Details:
Hyt...

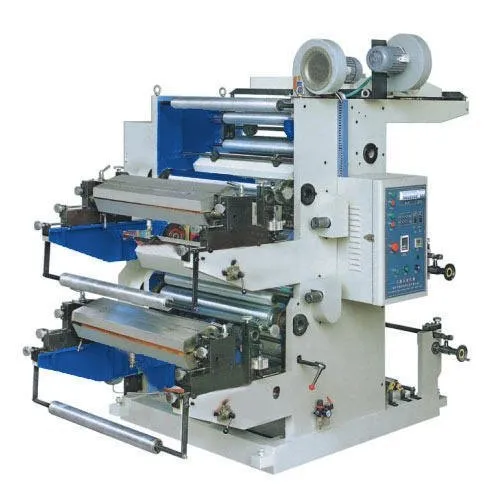

Hytech Mild Steel Online Flexo Printing Machine, F
