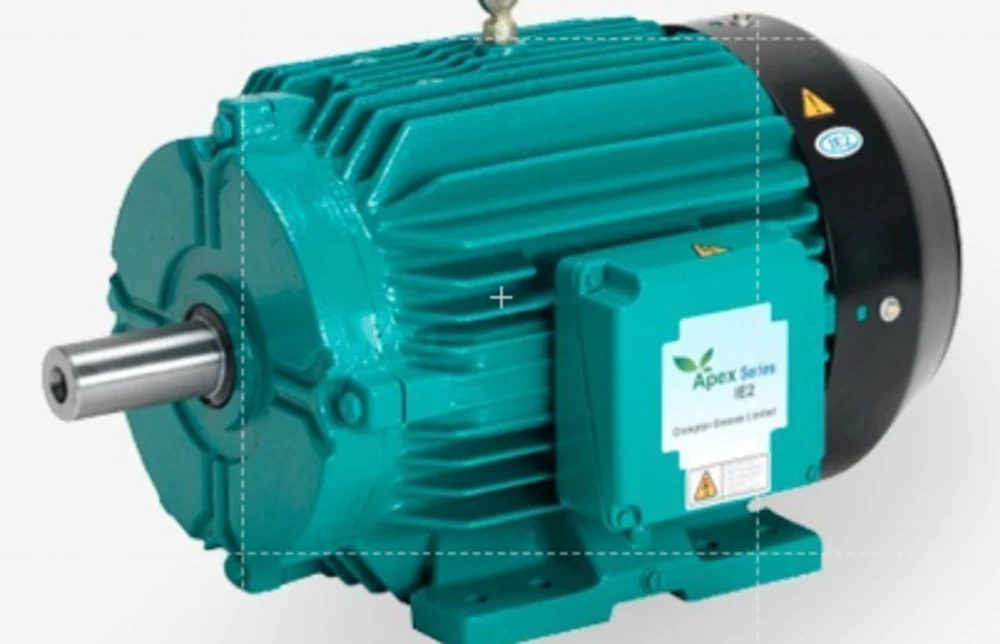

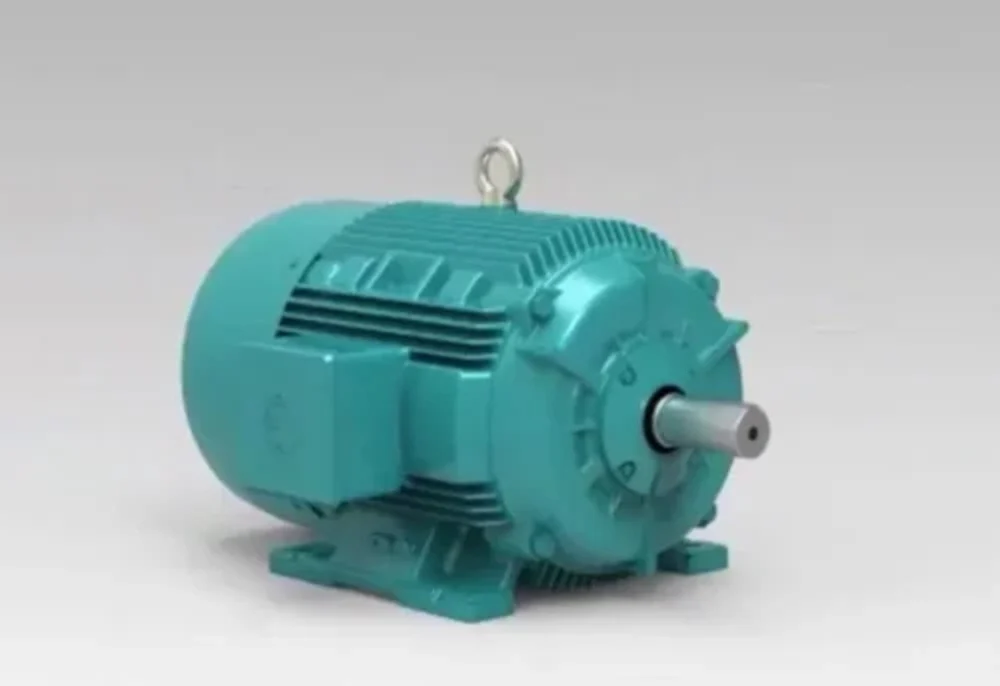

Crompton 3 Phase 45 kW 1500 RPM Flange Mount Non-FLP Motor in pune

Feature

Usage/Application	Industrial
Number Of Poles	4
Frequency	50 HZ
IP Rating	IP55
Frame Size	ND225M
Insulation Class	F
Mounting	Flange Mounting
Voltage	415+/- 10% V
No of Phase	Three Phase
Brand	Crompton
Power	45 kW
Ambient Temperature	50 degrees Celsius
Speed	1500 RPM
Country of Origin	Made in India

Description

At Innovators Electric Solutions Private Limited, we are offering a CG Power Make, 45KW 60HP Totally Enclosed Fan Cooled Squirrel Cage 3-phase induction motor (Foot and Flange mounted available),Squirrel cage Induction Motors with Enclosure conforming to protection IP 55 Horizontal Foot Mounted (B3),continuously rated (S1) suitable for operation on 415+/- 10% V,3 Phase 50Hz+/- 5% AC supply with ambient 50ºC,Class "F" insulation with temperature rise limited to Class "B" altitude less than 1000 m above m.s.l. Performance Efficiency values are conforming to IS12615 / IS/IEC 60034.
You can inquire with us for flameproof motors, IE2 efficiency, IE3 efficiency, IE4 efficiency motors also.
