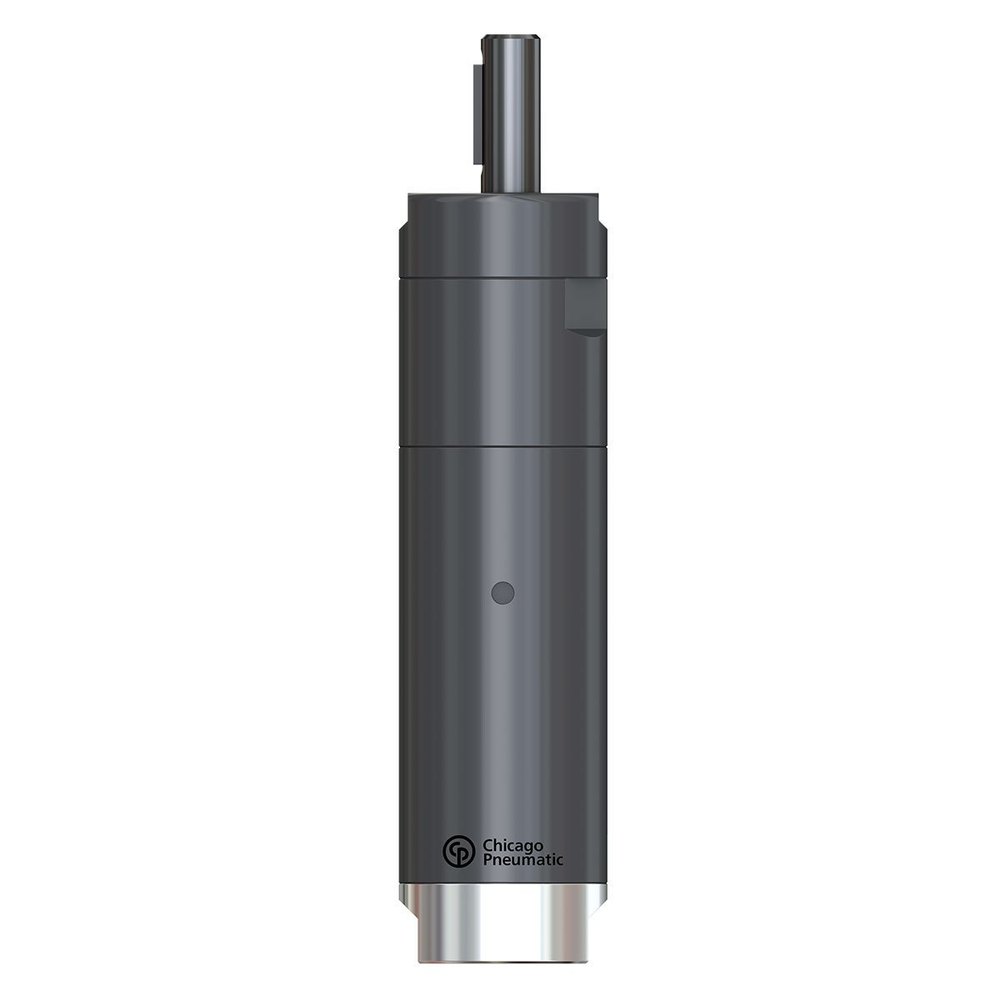

CP 0.39 kW Chicago Pneumatic M39-3000-KL-ATEX Air Motor
| Brand | CP |
| Model | M39-3000-KL-ATEX |
| Max Output Power | 0.39 kW |
| Torque At Max Speed | 2.6 Nm |
| Max Air Flow | 8.1 l/s |
| ATEX | Yes |
| ATEX code | II 2GD h T6 IIC T85 DegreeC |
| Weight | 0.75 kg |
| Output Spindle | 12 mm |
| Air Inlet Thread Size | 1/4 " |
| Air Inlet Thread Type | BSP |
| Lubrication Free | Yes |
| IP Rating | IP66 |
| Shaft Loading Code | c |
| Mini Starting Torque | 4.9 Nm |
| Stall Torque | 5.2 Nm |
| Minimum Order Quantity | 1 Piece |
Feature
| Brand | CP |
| Model | M39-3000-KL-ATEX |
| Max Output Power | 0.39 kW |
| Torque At Max Speed | 2.6 Nm |
| Max Air Flow | 8.1 l/s |
| ATEX | Yes |
| ATEX code | II 2GD h T6 IIC T85 DegreeC |
| Weight | 0.75 kg |
| Output Spindle | 12 mm |
| Air Inlet Thread Size | 1/4 " |
| Air Inlet Thread Type | BSP |
| Lubrication Free | Yes |
| IP Rating | IP66 |
| Shaft Loading Code | c |
| Mini Starting Torque | 4.9 Nm |
| Stall Torque | 5.2 Nm |
| Minimum Order Quantity | 1 Piece |
Description
- Benefits
- Air motors' heavy-duty characteristics enhance a sustainable use
- The Air Motors range proposes versatile solutions in any kind of industrial environment
- Chicago Pneumatic Air motors range offers long lasting efficiency
- Features
- Low friction design of vane and blade,
- Lubrication free design
- A Design to sustain stall torque loading indefinitely
- A Light and compact planetary gears system
- A long and slim design
- A range of accessories proposed to facilitate customized assembly.
- ATEX certification for zone 2
- A specific low air consumption design
- a strong starting torque for mobility during operation
