Compressed Air Flow Meters
| Model Name/Number | Scirocco 1000-1 & Scirocco 1000-2 |
| Display | Digital |
| Brand | Manas microsystems |
| Power Loss | 24Vdc/150mA ( Without Wireless communication) 24Vdc/300mA ( With Wireless Communication). |
| Country of Origin | Made in India |
| Accuracy | +-3 % of Actual Flow Rate between 100% to 5% of Calibrated range. (For still better accuracy consult |
| Output | 4-20 mA/RS 485,Pulse,Wireless Data Transfer. Wireless Data transfer (Optional). |
| Scirocco 1000-1 | Sensor and transmitter, can be mounted directly on service pipe with clamps provided |
| Scirocco 1000-2 | Complete with spool with an end connection of flange /BSP(M) Threading |
| Service Fluid | Dry & Clean compressed Air / Gas.(Mixture of gases not applicable). |
| Line Size | DN20 to DN50 (For others consult factory) |
| End Connection | Flange/BSP(M) Threading/ Direct clamp mounting |
| Flow Velocity Range | 5 m/s to 100 m/s max (at NTP Condition) |
| Operating Fluid Temp | 0 - 100 Degree C |
| Operating Fluid Pressure | 12 Bar Max |
| Operating Ambient Temperature | 0 - 50 Degree C |
| Temperature Drift at Ambient Temp | 0.008 % / DegreeC maximum of Full Scale in the range 0 to 60 Degree C |
| Ingress Protection | IP 65 for Transmitter (Sensor Excluded) |
Feature
| Model Name/Number | Scirocco 1000-1 & Scirocco 1000-2 |
| Display | Digital |
| Brand | Manas microsystems |
| Power Loss | 24Vdc/150mA ( Without Wireless communication) 24Vdc/300mA ( With Wireless Communication). |
| Country of Origin | Made in India |
| Accuracy | +-3 % of Actual Flow Rate between 100% to 5% of Calibrated range. (For still better accuracy consult |
| Output | 4-20 mA/RS 485,Pulse,Wireless Data Transfer. Wireless Data transfer (Optional). |
| Scirocco 1000-1 | Sensor and transmitter, can be mounted directly on service pipe with clamps provided |
| Scirocco 1000-2 | Complete with spool with an end connection of flange /BSP(M) Threading |
| Service Fluid | Dry & Clean compressed Air / Gas.(Mixture of gases not applicable). |
| Line Size | DN20 to DN50 (For others consult factory) |
| End Connection | Flange/BSP(M) Threading/ Direct clamp mounting |
| Flow Velocity Range | 5 m/s to 100 m/s max (at NTP Condition) |
| Operating Fluid Temp | 0 - 100 Degree C |
| Operating Fluid Pressure | 12 Bar Max |
| Operating Ambient Temperature | 0 - 50 Degree C |
| Temperature Drift at Ambient Temp | 0.008 % / DegreeC maximum of Full Scale in the range 0 to 60 Degree C |
| Ingress Protection | IP 65 for Transmitter (Sensor Excluded) |
Description

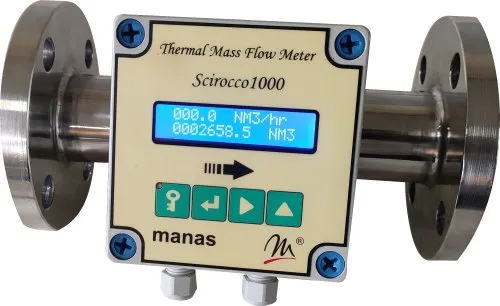

The Thermal Dispersion Mass Flowmeter, Series Scirocco 1000 measuring principle is based on the fact that heat is drawn from a heated body when a fluid flows past.A Thermal Dispersion Mass Flowmeter contains two Platinum RTD temperature sensors for this purpose. One sensor measures the current fluid temperature as a reference. The second sensor is heated and has a constant temperature differential relative to the first sensor. When the flow of air/gas starts heat is taken away from the warmer sensor. The amount of heat taken away is having a direct relation with the mass velocity of the fluid. This eliminates the need for temperature and pressure compensation. Thermal Dispersion Mass Flowmeter, Series Sciricco 1000 is available with insertion probe type or Complete Spool type with proper end connection. Insertion probe can be installed directly on the pipe carrying compressed air, with the help of clamps supplied along with probe.
