Compressed Air Flow Meter
Model Name/Number | Scirocco 1000-1 & Scirocco 1000-2 |
Display | Digital |
Brand | Manas microsystems |
Power Loss | 24Vdc/150mA ( Without Wireless communication) 24Vdc/300mA ( With Wireless Communication). |
Country of Origin | Made in India |
Accuracy | +-3 % of Actual Flow Rate between 100% to 5% of Calibrated range. (For still better accuracy consult |
Output | 4-20 mA/RS 485,Pulse,Wireless Data Transfer. Wireless Data transfer (Optional). |
Scirocco 1000-1 | Sensor and transmitter, can be mounted directly on service pipe with clamps provided |
Scirocco 1000-2 | Complete with spool with an end connection of flange /BSP(M) Threading |
Service Fluid | Dry & Clean compressed Air / Gas.(Mixture of gases not applicable). |
Line Size | DN20 to DN50 (For others consult factory) |
End Connection | Flange/BSP(M) Threading/ Direct clamp mounting |
Flow Velocity Range | 5 m/s to 100 m/s max (at NTP Condition) |
Operating Fluid Temp | 0 - 100 Degree C |
Operating Fluid Pressure | 12 Bar Max |
Operating Ambient Temperature | 0 - 50 Degree C |
Temperature Drift at Ambient Temp | 0.008 % / DegreeC maximum of Full Scale in the range 0 to 60 Degree C |
Ingress Protection | IP 65 for Transmitter (Sensor Excluded) |
Feature
Model Name/Number | Scirocco 1000-1 & Scirocco 1000-2 |
Display | Digital |
Brand | Manas microsystems |
Power Loss | 24Vdc/150mA ( Without Wireless communication) 24Vdc/300mA ( With Wireless Communication). |
Country of Origin | Made in India |
Accuracy | +-3 % of Actual Flow Rate between 100% to 5% of Calibrated range. (For still better accuracy consult |
Output | 4-20 mA/RS 485,Pulse,Wireless Data Transfer. Wireless Data transfer (Optional). |
Scirocco 1000-1 | Sensor and transmitter, can be mounted directly on service pipe with clamps provided |
Scirocco 1000-2 | Complete with spool with an end connection of flange /BSP(M) Threading |
Service Fluid | Dry & Clean compressed Air / Gas.(Mixture of gases not applicable). |
Line Size | DN20 to DN50 (For others consult factory) |
End Connection | Flange/BSP(M) Threading/ Direct clamp mounting |
Flow Velocity Range | 5 m/s to 100 m/s max (at NTP Condition) |
Operating Fluid Temp | 0 - 100 Degree C |
Operating Fluid Pressure | 12 Bar Max |
Operating Ambient Temperature | 0 - 50 Degree C |
Temperature Drift at Ambient Temp | 0.008 % / DegreeC maximum of Full Scale in the range 0 to 60 Degree C |
Ingress Protection | IP 65 for Transmitter (Sensor Excluded) |
Description
The Thermal Dispersion Mass Flowmeter, Series Scirocco 1000 measuring principle is based on the fact that heat is drawn from a heated body when a fluid flows past.A Thermal Dispersion Mass Flowmeter contains two Platinum RTD temperature sensors for this purpose. One sensor measures the current fluid temperature as a reference. The second sensor is heated and has a constant temperature differential relative to the first sensor. When the flow of air/gas starts heat is taken away from the warmer sensor. The amount of heat taken away is having a direct relation with the mass velocity of the fluid. This eliminates the need for temperature and pressure compensation. Thermal Dispersion Mass Flowmeter, Series Sciricco 1000 is available with insertion probe type or Complete Spool type with proper end connection. Insertion probe can be installed directly on the pipe carrying compressed air, with the help of clamps supplied along with probe.
Related Products

Insertion Ultrasonic Flow Meter
Manas have now introduced a new Insertion Type ...

Compressed Air Flow Meters
The Thermal Dispersion Mass Flow...

Thermal Mass Flow Meter
The Thermal Dispersion Mass Flow...

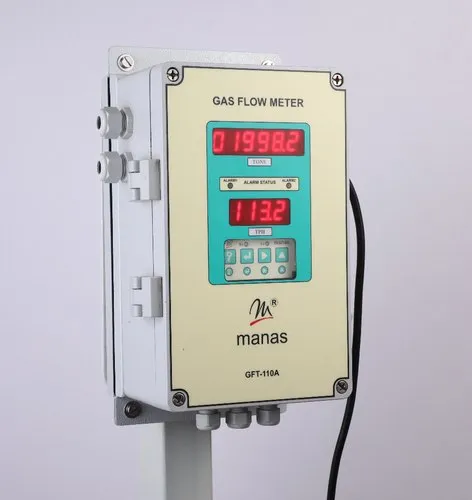

Gas Flow Totalizers
- The GFM series GFT-100A is suitable for...

Milk Flow Meter
The Series SG-Sroat of Electromagnetic Flow Met...

CNG Gas Flow Meters
CNG engines are thoroughly tested to ensure hig...

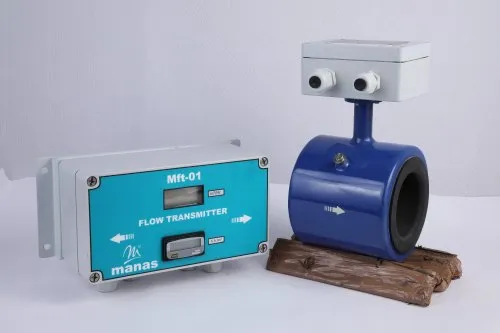

Wafer Type Electromagnetic Flowmeter
Introduction:

Clamp On Type Ultrasonic Flow Meter
Manas have now introduced a new Clamp On Type U...

Digital Compressed Air Flow Meter
The Thermal Dispersion Mass Flow...

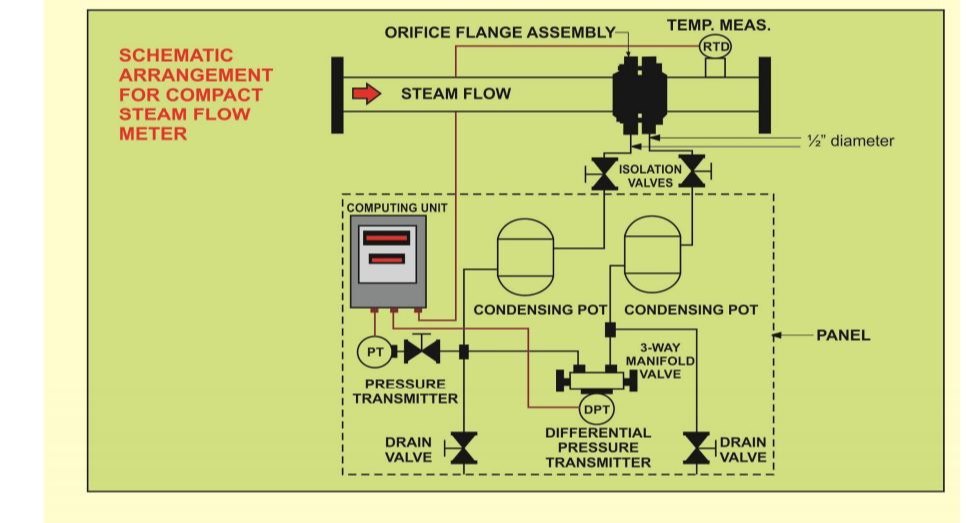

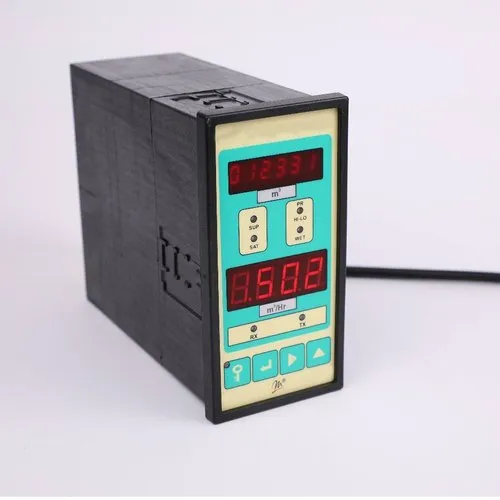

Steam Flow Totalizer
Other Details:
-
<...

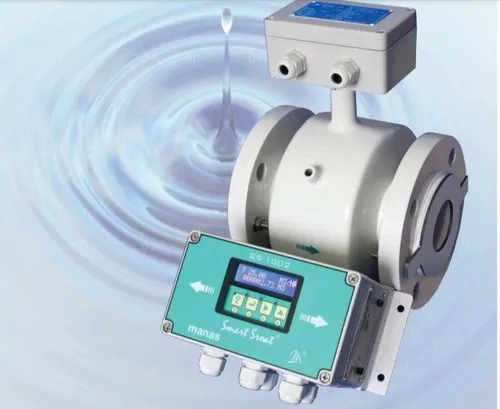

Full Bore Electromagnetic Flow Meter
![]() Battery Operated Electromagnetic Flow Meter

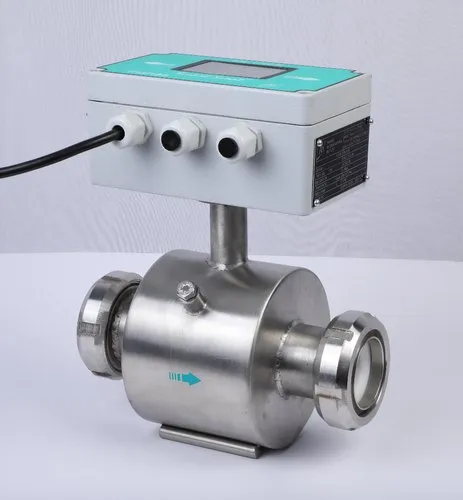

Manas have now introduced a ne... ![]() Flow Indicating TotalizerThe FIT -100 series is a compact sized Totalise... ![]() Stainless Steel Biogas Flow Meter, Model Name/Number: Scirocco1000Manas Microsystems is a manufacturer of mass fl... ![]() Sanitary Grade Electromagnetic Flow Meter

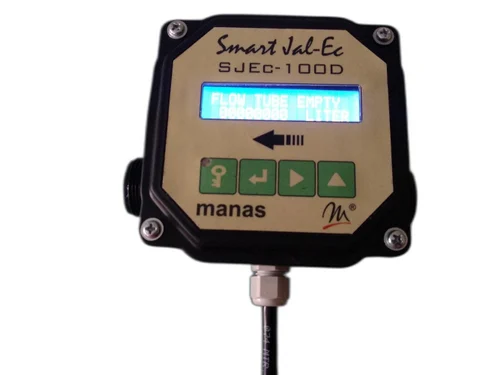

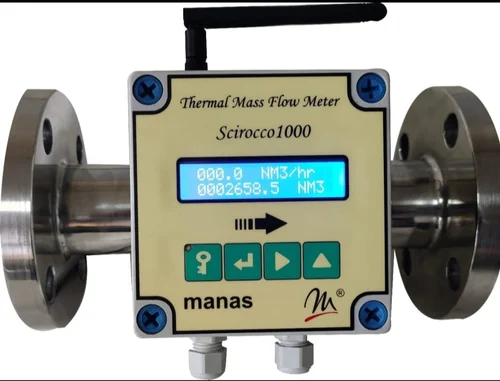

![]() Air Flow MeterThe Thermal Dispersion Mass Flowmeter, Series S... ![]() Biogas Flow Meter in PuneAdditional Information: ...![]() Smart Jal EC Electromagnetic Flow Meter

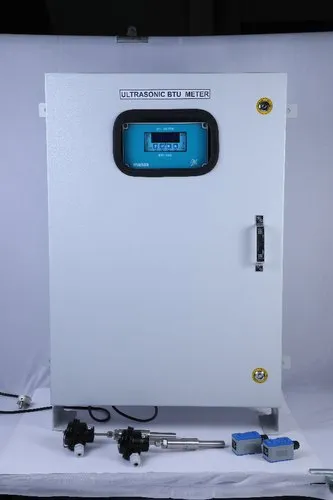

![]() Ultrasonic BTU Meter, For Industrial, Model: UBTUcManas have now introduced a new Ultrasonic BTU ... ![]() Insertion Flow MeterSpecifications: |
