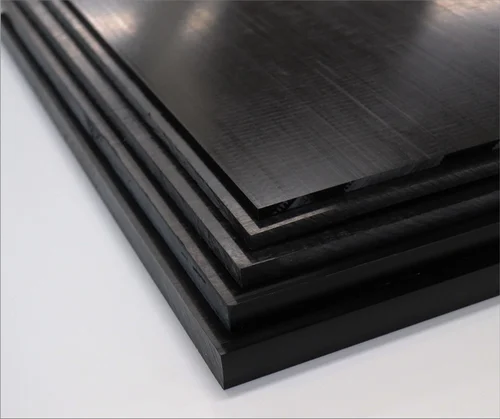

Color Coated Black Rectangle Delrin Sheet, Thickness: 5mm, Size: 300 X 500 Mm (lxw) in mumbai

Rashmi Pallet Racks With Decking Panel

Warehouse. This product is used in food & beverage industry, dairy industry, chemical industry, sanitary industry, and electronic industry. Manufactured using ultra-modern machines, we offered these racks in different size and specifications. Apart from this, we are offering these products at very reasonable rates.

...

1400 KV Brushless DC Motor A2212 with soldered connectors

With prosperous industry practice, our entity has gained huge appreciation in the market by presenting 1400 KV Brushless DC Motor A2212 with soldered connectors to our respected patrons.

...

Epoxy Potting compound For Electronics

Veefill 69Dis a two-componentblackcolored, epoxy potting system especially designed for potting application ofelectrical and electronic components.
It contains specially selected and processed fillers incorporated under vacuum and are non abrasive in nature. It is ready to use system where Part A is filled & Part B is unfilled.
It is low viscous, cold curing system with a low exotherm.

...

Carbon Steel Die Spring Set, For Industrial

Die Spring Characteristics
Shama Spring has designed and manufactures a complete line of industrial die springs. Generally used in die machinery, they are well-suited for many applications where high-static or shock-load stresses are required or when maximum cycle-life is important.

Measuring Die Springs

Measure the Hole Diameter (also known as Outside Diameter)
Measure the Rod Diameter (also known as Inside Diameter)
Measure the Free Length (no load on the spring)
Measure the Wire Size (both width and thickness dimensions)
Use our search feature or catalog to find the correct color code and size for your needs.

For example, if a die spring measures .96″ on the hole dimension, it will fit into a 1″ hole. If it measures .56″ on the rod dimension, it will fit over a .50″ rod. Note: Die springs are manufactured to a “GO/NO-GO” dimension.

Hole and Rod Diameter
The die spring containment hole diameter sizes used in our online and print catalogs must be considered to eliminate possible spring-to-wall friction caused by heat, wear due to fabrication tolerances, and interference from the spring diameter growth due to compression. If the spring is long for its diameter, an internal supporting rod may be required to eliminate spring buckling.

Heat
Thermal effects are frequently ignored in spring failure or load-loss analysis. The maximum rated service temperature for chrome-alloy steel is about 440° F. The following table reflects the approximate load losses due to heat that can be expected with die springs.

Finish
Die springs of oil-tempered material are available as unfinished only. A colour coding system is employed for our chrome-alloy line for instant visual identification of the spring’s work range and to prevent errors in spring selection and installation. The colour coding is a light coating of water-based paint.

ISO

Light Duty – Blue
Medium Duty – Red
Heavy Duty – Gold
Extra-Heavy Duty – Green

JIs

Light Load – Green
Medium Load – Blue
Heavy Load – Red
Extra-Heavy Load – Yellow

Technical Specification:

Available Length:25 mm to 305 mm
Available Diameter: 20-60 mm
Wire Diameter: 10-20 mm

...

Color Coated Black Rectangle Delrin Sheet, Thickness: 5mm, Size: 300 X 500 Mm (lxw)

Feature

Description
