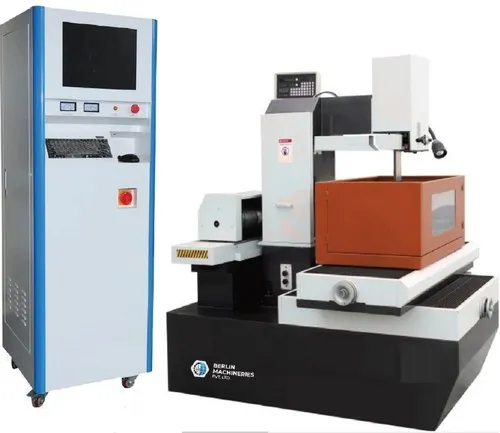

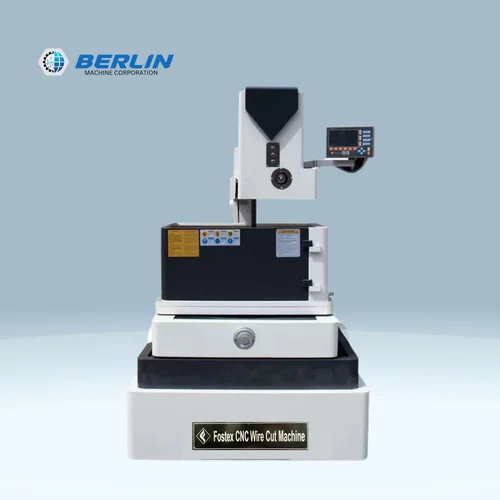

CNC Wire Cut FZC Series Machine
Minimum Order Quantity | 1 Unit |
Model Name/Number | FZC7732 |
Machine Type | WIRE CUT EDM MACHINE(SERVO) |
Brand | Fostex |
Wire Dia | 0.30 mm |
Wire Speed | 12, 9, 7, 5, 2 m/sec |
Size | 2050x1850x2000 mm |
Max Cutting Angle | +/-3 deg/80 mm (15, 30 and 60 deg is Optional) |
Driving Motor | Stepper Motor / AC Servo Motor (Optional) |
Weight | 2600 kg |
Tension System | Three Stage (0/1/2) Tension Adjustable |
Power Supply | 415 V / 50 Hz, 2.5 kW |
Guide Screw and Track | Precision Ball Screw / Linear Guide Way |
Country of Origin | Made in India |
Feature
Minimum Order Quantity | 1 Unit |
Model Name/Number | FZC7732 |
Machine Type | WIRE CUT EDM MACHINE(SERVO) |
Brand | Fostex |
Wire Dia | 0.30 mm |
Wire Speed | 12, 9, 7, 5, 2 m/sec |
Size | 2050x1850x2000 mm |
Max Cutting Angle | +/-3 deg/80 mm (15, 30 and 60 deg is Optional) |
Driving Motor | Stepper Motor / AC Servo Motor (Optional) |
Weight | 2600 kg |
Tension System | Three Stage (0/1/2) Tension Adjustable |
Power Supply | 415 V / 50 Hz, 2.5 kW |
Guide Screw and Track | Precision Ball Screw / Linear Guide Way |
Country of Origin | Made in India |
Description
NAME: FZC SERIES FEATURES • Robust frame with ‘C’’ mast. • Long travel rail installed in the bottom, which improves the stability for heavy job piece. • With height adjustable diamond guider. • Four axes independent (X/Y/U/V) work, with Taiwan linear and ball screw. Special Tensioning mechanism for molybdenum wire, keep stable cutting. Stepper motor is standard / Servo motor is optional. • Tolerance can be mentioned in +/-0.006 mm, Roughness Ra 0.8 • Full enclosed cover, Similar to European machine. • New generation control cabinet, high efficient.
