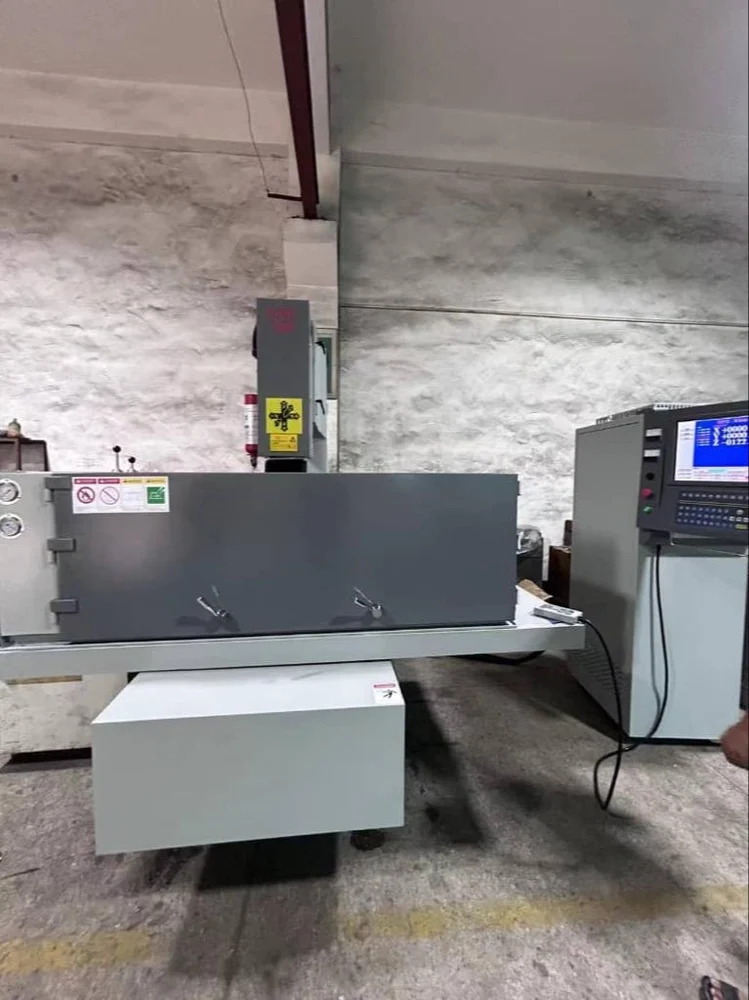

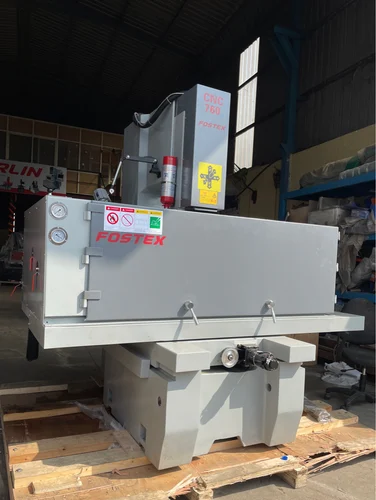

Cnc Spark Erosion Machine
| Minimum Order Quantity | 1 Piece |
| Power Consumption | 1 KVA |
| Automation Grade | Automatic |
| Model Name/Number | FHL450 |
| Machine Type | CNC Spark Erosion Machine |
| Brand | Fostex |
| Current | 40A |
Feature
| Minimum Order Quantity | 1 Piece |
| Power Consumption | 1 KVA |
| Automation Grade | Automatic |
| Model Name/Number | FHL450 |
| Machine Type | CNC Spark Erosion Machine |
| Brand | Fostex |
| Current | 40A |
Description
Latest 6th generation Windows platform control system • Up-and-down working tank door, same space, easy to handle. • Intelligent automatic EDM machining. • New expert database. • Excellent performance of both cooper and graphite electrode machining. • Multiple pages editing at the same time, no need to stop machining. • Min machining current 0.1A. • Best surface finish Ra≤0.08µm • Positioning accuracy ≤5μm • Imported SP grade linear guideway • C2 grade ball screw • High jump function, after several times of regular jump discharging, Z axis move higher, and then goes with regular jump height again, it is help for deep groove and massive area machining. Machining speed is about 30% faster than DOS platform discharging control system. Auxiliary learning function
