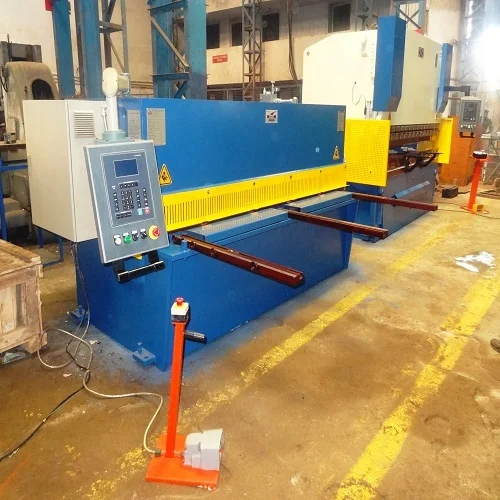

CNC Operated Hydraulic Shearing Machine
The CNC operated Hydraulic Shearing machines offered by us feature use of hydraulically-driven swing beam as well as steel plate welded structure so as to deliver optimum performance standards. Further, these include accumulator -based pullback cylinders with steady as well as reliable operations.
Being Hydraulic Shearing Machine CNC Controlled (Cyblec Make), these have maximum shearing thickness of 4 mm with maximum shearing width of 2500 mm. Further, with plate tensile strength of 450 N / mm2, these can easily handle shearing angles of 1.5 degree with back gauge distance of 20 to 800 mm.
Some of the salient features of these machines include:
- Allowing stepless control for stroke
- Allowing gap between up and down blade to be manually adjusted by handle for high uniformity
- Featuring protection fence and electric interlock to ensure complete operation safety
- Closed loop control system comprising
- CNC system Position coder features fast response speed, high precision and exceptional stability
- Complete accuracy in displacement of back gauge
Technical Specifications
Type | Hydraulic Shearing Machine CNC Controlled (Cyblec Make) |
Max. Shearing Thickness | 4 mm |
Max. Shearing Width | 2500 mm |
Plate Tensile Strength | 450 N / mm2 |
Shearing Angle | 1.5 degree |
Back Gauge distance | 20 to 800 mm |
Stroke Number | 18 to 20 per minute |
Distance between uprights | 2710 mm |
Blade Length | 2600 mm |
Table Height | 800 mm |
Electric Motor | 7.5 KW, 1440 RPM |
Dimensions | 3100 x 1470 x 1560 mm (L x W x H) |
Approx weight | 4800 kgs. |
Back gauge Motor | 0.75 kw ; 910 r.p.m. |
