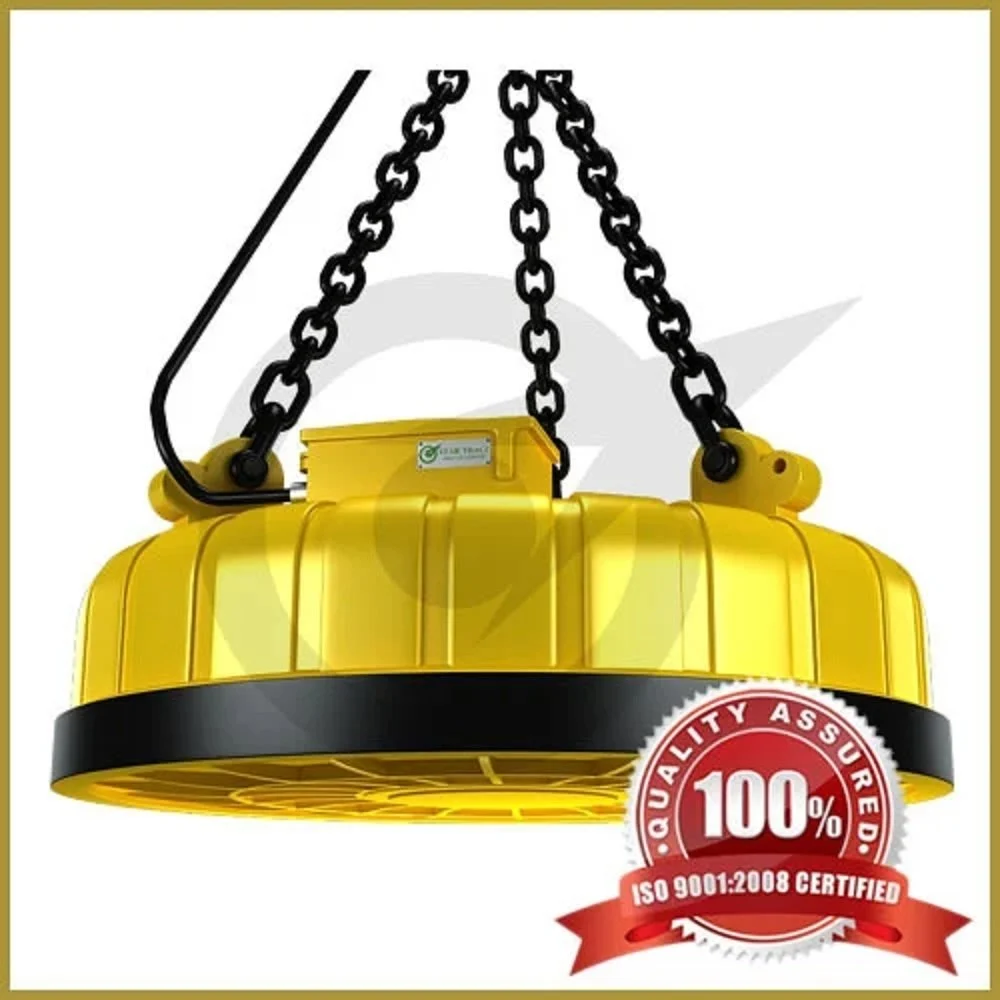

Circular Lifting Magnet
| Lifting Capacity | 251-500kg |
| Magnet Type | Circular Lifting Magnet |
| Type Of Magnet Used | Electro Lifting Magnet |
| Applications | Heavy Duty Lifting |
| Dimensions (mm) | 1100 MM |
| Thickness (mm) | 350 MM |
| Shape | Circle |
| Max Operating Temp | 100 Deg.C |
| Country Of Origin | Made In India |
Feature
| Lifting Capacity | 251-500kg |
| Magnet Type | Circular Lifting Magnet |
| Type Of Magnet Used | Electro Lifting Magnet |
| Applications | Heavy Duty Lifting |
| Dimensions (mm) | 1100 MM |
| Thickness (mm) | 350 MM |
| Shape | Circle |
| Max Operating Temp | 100 Deg.C |
| Country Of Origin | Made In India |
Description
Circular Lifting Magnet are of robust cast and bolted or fabricated construction designed for handling solid slabs, steel ingots, bloom billets, pig iron, light finished parts, scrap and gives maximum reliable, efficient and economical performance in the most arduous service condition.
shells of circular lifting magnet are made from high permeability steel casting as per is:4491(bss-1617), properly machined, to provide the most efficient magnetic circuit. the periphery of the magnet is heavily ribbed to give added mechanical strength and an increased radiation surface to aid cooling. center & outer poles are machine from high permeability magnet steel with cored recesses arrangement to protect heads of through tensile bolts. the faces of poles from spigot joints in magnet shell, the outer poles of larger magnets are skirted for added. the pole shoes are easily replaceable.
Specifications:
details of aluminium conductor lifter approximate lifting capacities(kgs.) model no. d h weight (kgs) power (k.w) heavy scrap broken scrap cast iron solid bloom str 101 700 750 400 2.8 200 160 165 4000 str 102 900 900 750 3.8 350 275 300 7000 str 103 1100 950 1400 6 625 475 500 9000 str 104 1300 1050 1850 9.5 960 725 775 16000 str 105 1600 1200 3100 11.5 1500 1100 1200 24000 str 106 1800 1300 3600 12.5 200 1650 1800 30000
