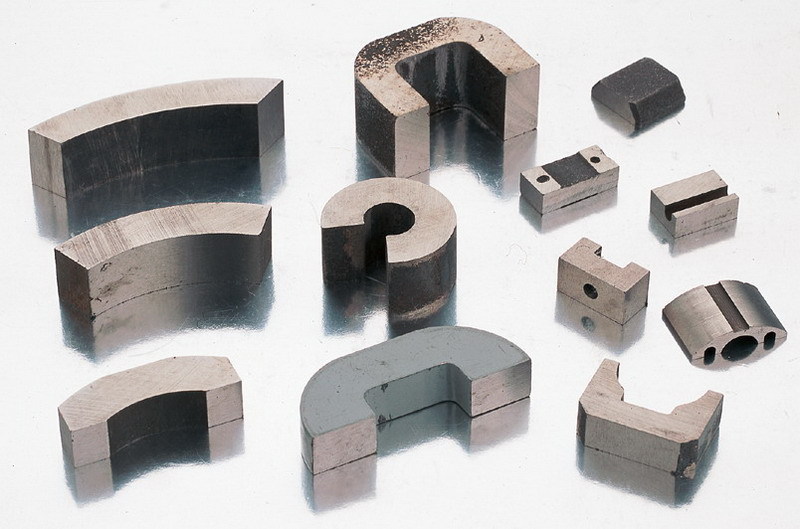

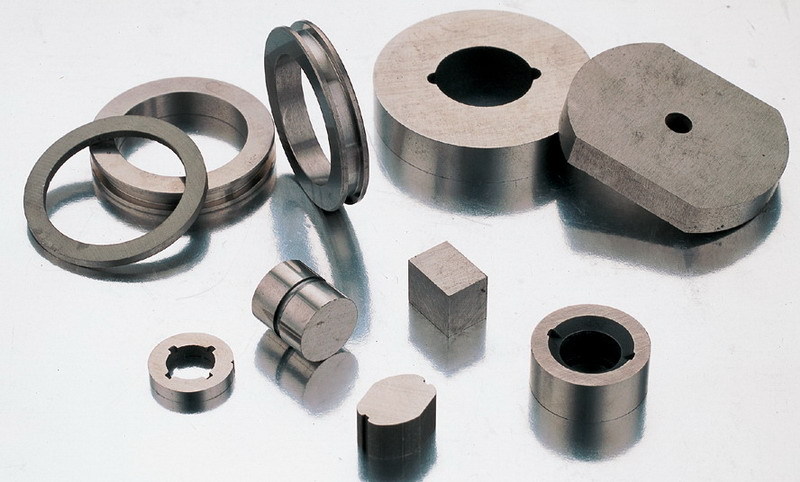

Cast Alnico Magnet

Alnico Magnets - Overview

Alnico magnetshave the best temperature coefficients of any magnet material.Alnico magnetsare a best choice in extremely high temperature applications.

Alnico magnets are Cast or Sintered.

Weaker Isotropic alnico takes complex magnetic fields. Stronger anisotropic alnico has a fixed DoM axis.

Cast Alnico 5 is the most common grade of Alnico, with the LNG44 variant of Alnico 5 (Alcomax 3) being the most popular.



Advantages of Alnico Magnets

- Cast Alnico offers a near net shape. Cast alnico can be produced to complex shapes with complex magnetic patterns.- Alnico Br as high as NdFeB at room temperature.- Can be used up to 450-550 degrees C (842-932F).- Least variation in magnetic output with temperature change of any magnetic material.- Can be cast in very large sizes.

Typical Applications for Alnico Magnets

- Very high temperature applications- Use in hot oils- Clamping- Motors and Generators- Mass spectrometers- Precision sensors and meters- Aerospace
