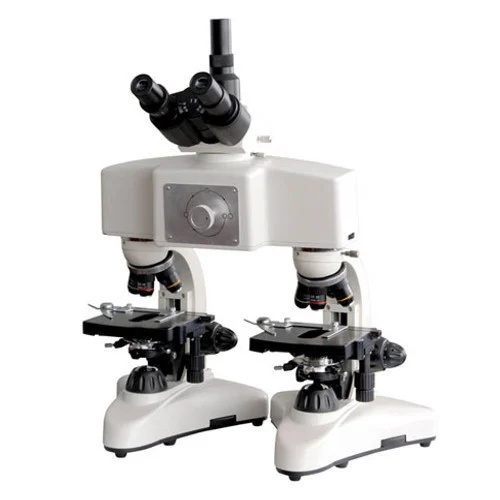

C 200 Comparison Microscope, C200
Model | C200 |
Nosepiece | Quintuple, Inward |
Eyepiece | WF10X/18mm |
Condenser | NA=1.25 with iris diaphragm and filters |
Illumination | 6V 30W halogen lamp, AC85~230V, Adjustable. |
Feature
Model | C200 |
Nosepiece | Quintuple, Inward |
Eyepiece | WF10X/18mm |
Condenser | NA=1.25 with iris diaphragm and filters |
Illumination | 6V 30W halogen lamp, AC85~230V, Adjustable. |
Description
Description:
- Comparison Microscope makes you view two images (left and right) from two objects at the same time. Adjusting two images to connect or lap over, then differentiate the minuteness difference between them, for instance, identifying the bullet' mark, tool's mark, fingerprint, stamp, letters, money, presswork, etc. It is an ideal instrument for Police and other department which need object comparison. There're several different viewing state available on comparison head
- Full left image, full right image, a part of left and right images, left and right superposition image.
- The total magnification of comparison head : 1X
- Monocular, Binocular or Trinocular comparison head are for option.
Specifications:
- Optical System: Finite Plan Optical System
- Viewing Tube: Siedentopf trinocular head, Interpupillary distance 55~75mm, 30 Degree inclined, diopter adjustable.
- Stage: Double Stage: 140x140mm, moving range: 75x70mm
- Objectives:
- Achromatic 4X/0.10 WD=12.86mm
- Achromatic 10X/0.25 WD=9.67mm
- Achromatic 40X/0.65(S) WD=7.97mm
- Achromatic 100X/1.25(S,O) WD=3.76mm
- Achromatic 20X/0.25 WD=9.67mm
- Achromatic 60X/0.75 WD=7.97mm
