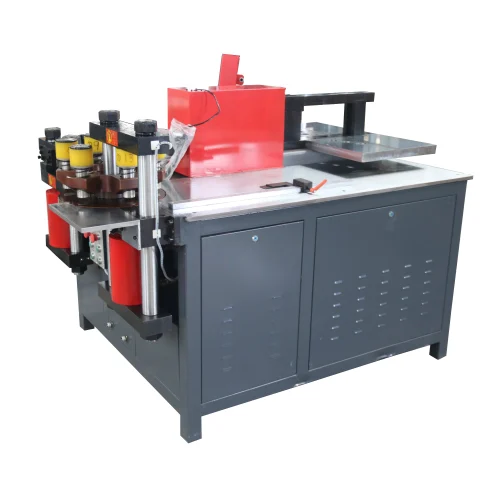

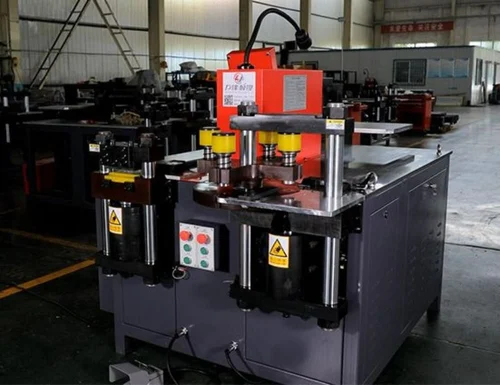

Busbar Cutting Machine, Automation Grade: Fully in
| Type of Machine | Plasma Cutting Machine |
| Load Capacity | upto 10 Ton |
| Automation Grade | Fully Automatic |
| Overall Dimensions | na |
| Feeding Station | na |
| Material | na |
Feature
| Type of Machine | Plasma Cutting Machine |
| Load Capacity | upto 10 Ton |
| Automation Grade | Fully Automatic |
| Overall Dimensions | na |
| Feeding Station | na |
| Material | na |
Description
Techno Crafts offers Turret Punching Machine. The Boschert multipunch auto tool carrousel is mounted at the front and below table level.
Product Profile:
- Techno Crafts offers CNC Turret Punching Machine. The Boschert multipunch auto tool carrousel is mounted at the front and below table level. The Multipunch tool carrousel is mounted at the front of the machine, below table level. The vertical and horizontal axis movements are controlled by ball screws with linear ball guides using double carriages. The rotary axis positions the eight cassettes with a track and pinion drive. The Multipunch uses Trumpf style tools up to size ll (3”) and Boschert Revotools. It is possible to have up to 64 individual tools, which are all fully indexable in the machine.
Features:
- Fast tool change in 3 up to 5 seconds
- High accurate punch guiding system. The tool is fitted directly in the piston so no additional clearance like on turret machines. These feature warranty long tools live on punch and dies
- Smart auto clamp movement system. Very fast set up of the clamps on the required position
- Up to 4 clamps possible (2 standard)
- Easy sheet loading system; sheet lifting device 2 pneumatic cylinder to lift the sheets, so that it can be easily moved to the clamps without human handling
- Set of Keys and instruction manuals
- Automatic removal of small parts and scrap 300x200 mm
- Waste removal suction system to prevent the slug to move up
- Programmable stroke adjustment
- Multitalk Memory extension with USB and LAN connection for Labod control
- Safety light guards in front of the machine
- price Range -10 lakhs to 30 lakhs
