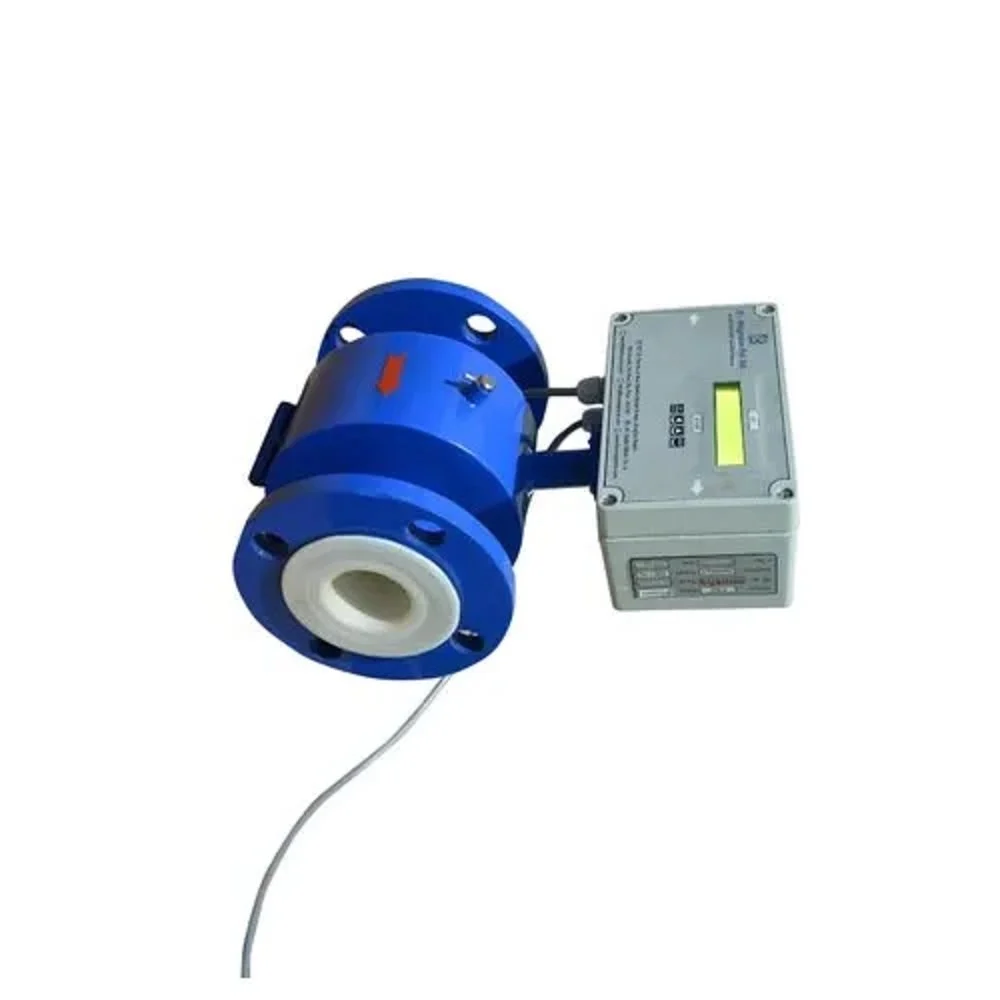

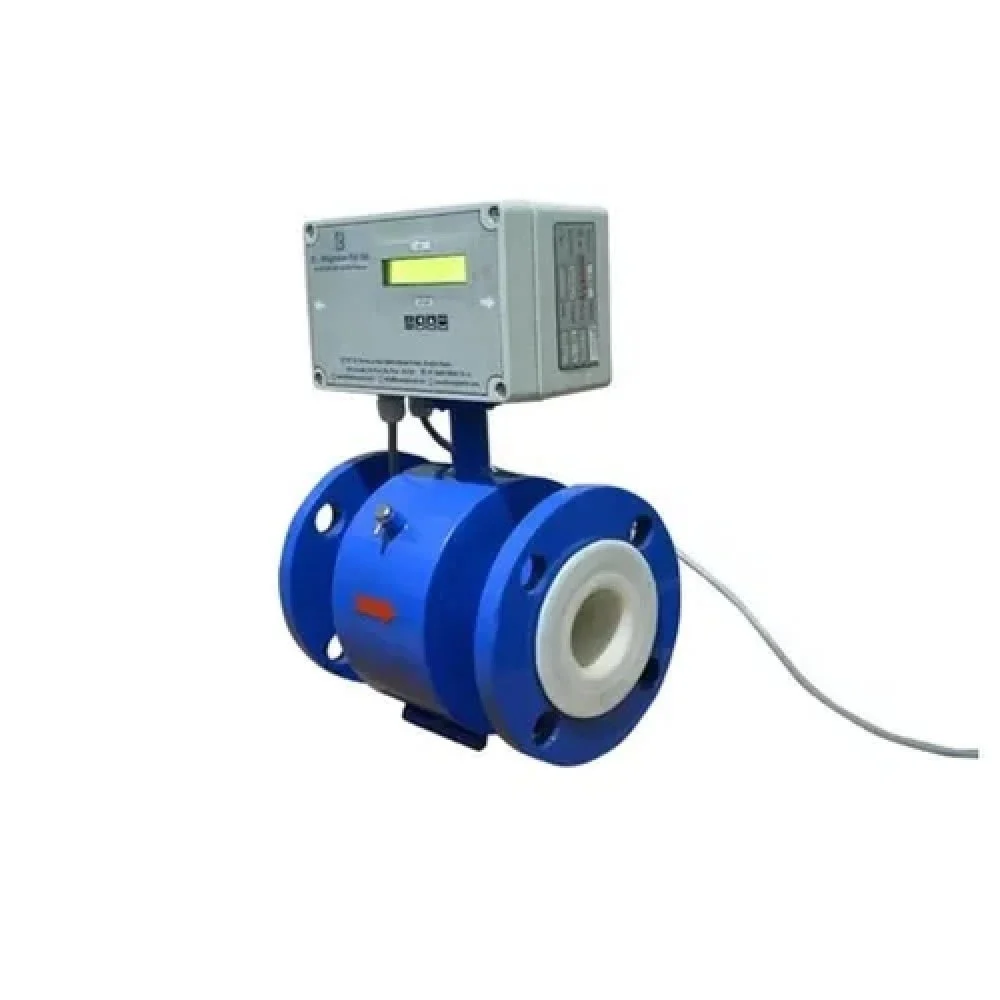

BSS Flange End Digital Flow Meter, For ETP, Model: Model FT 02

21000 incl. GST

In order to cater the variegated demands of our precious clients, we are offering a wide range ofFull Bore Integral Mounting Electromagnetic Flow Meter.

Application:
This meter is more suitable with those fluids which present difficulties in handling. Fluids such as effluents, slurries, pulps, brines & other highly corrosive liquids, acids & bases, fermented wash, molasses etc. Following industries can find lot of application of this flow measurement technique.


  • Effluent Treatment Plants
  • Sewage Treatment Plants
  • Water Supply Schemes
  • Steel & Aluminum
  • Sugar Industries & Distilleries
  • Pulp & Paper
  • Chemical & Pharmaceutical
  • Petrochemicals & Fertilizers
  • Food & Drugs



Additional Information

Delivery Time 4 to 5 day
Production Capacity 100
Packaging Details WOODEN

Feature
Application Media Any Liquid
Display Type Digital LED/LCD
Usage/Application ETP
Connection Flange end
Flow range 0.190 M3/HR to 12215 M3/HR
Operating Temperature Max 125 Degree C PTFE 175 Degree C for PFA
Accuracy + - 0.5%
Brand BSS
Model Model FT 02
Electrode Material S.S. 316 L / Titanium
Communication RS 485 Modbus O/P and GSM Connectivity
Power Supply 230 VAC/ 24 VDC
Junction Box Aluminum Die cast IP 65/67
Minimum Order Quantity 1
Description

In order to cater the variegated demands of our precious clients, we are offering a wide range ofFull Bore Integral Mounting Electromagnetic Flow Meter.

Application:
This meter is more suitable with those fluids which present difficulties in handling. Fluids such as effluents, slurries, pulps, brines & other highly corrosive liquids, acids & bases, fermented wash, molasses etc. Following industries can find lot of application of this flow measurement technique.


  • Effluent Treatment Plants
  • Sewage Treatment Plants
  • Water Supply Schemes
  • Steel & Aluminum
  • Sugar Industries & Distilleries
  • Pulp & Paper
  • Chemical & Pharmaceutical
  • Petrochemicals & Fertilizers
  • Food & Drugs



Additional Information

Delivery Time 4 to 5 day
Production Capacity 100
Packaging Details WOODEN
