Briquette Batching System
| Brand | Midas Autosoft |
| Automation Grade | Automatic |
| Frequency | 50 Hz |
| Power Source | Electric |
| Accuracy | 0.2% |
| Voltage | 24 V |
| Flow range | 50 L/Min |
| Country of Origin | Made in India |
Feature
| Brand | Midas Autosoft |
| Automation Grade | Automatic |
| Frequency | 50 Hz |
| Power Source | Electric |
| Accuracy | 0.2% |
| Voltage | 24 V |
| Flow range | 50 L/Min |
| Country of Origin | Made in India |
Description

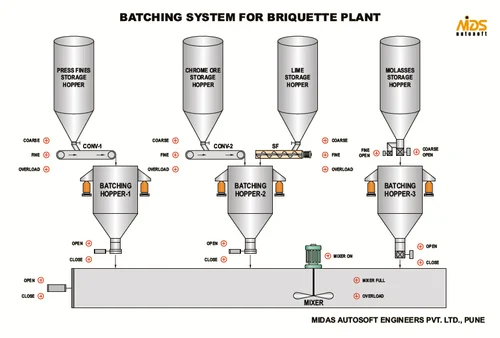

Briquette Batching System is provided below storage hoppers (first Batch hopper for Chrome fines/Lime and second for Molasses). Batch hoppers are installed on 3 Nos.of imported Load cells below the storage hoppers. Batch house panel will have switches, lamp, timers, power supply, relays, VFD for conveyer/screw feeder, etc for Automatic/Manual operation and Mimic diagram of the complete Batching system to know the status (ON/OFF, Coarse/Fine, Overload, etc) of the field Instruments like Screw feeder, Conveyers, Gate/Ball Valves, Mixer and Mixer gate. In Manual Mode, switches are provided for Screw-feeder, conveyer and Ball Valve. Operator can take the batch with help displayed weight and switches.
