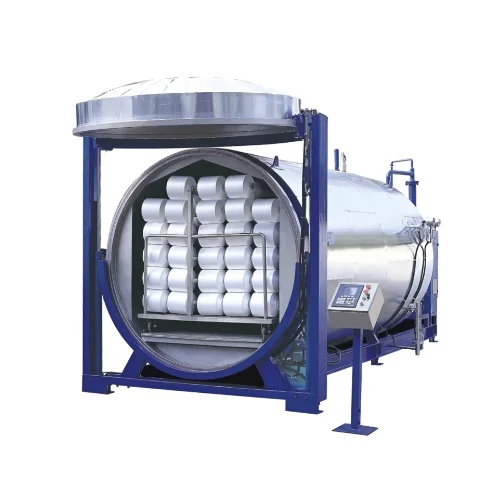

Automatic Yarn Heat Setting Machine, Capacity: 300 Kgs in Thane

Vacuum Pump :

A water ring vacuum pump of 10hp is provided with the machine. The vacuum pump requires a water pressure of 1.0 to 1.5 kg/cm^2 as water is used as a sealant in the vacuum pump. The maximum vacuum possible is 650mm of mercury.

Control Panel :

The control panel is designed to work on 415 volts, 3 phase, and neutral A.C supply and houses the entire instrumentation and electrical controls. The control panel body is manufactured out of 1.5mm MS sheet and duly powder coated.

Required rotary switches for auto / manual operationsneon lamp indications and mimic diagram are also provided. In automatic operation a microprocessor programmer will be controlling the entire process.

Few Important Features are as Follows.

User can program the process as per his need simply with the help of key board.
User can select any of the standard programs stored in the memory of the instruments.
It has the facility of deleting any of the stages of the process.
Continuous display is provided for each progressing stage of the process.
Memory retentions in case of power failures.
The entire process control of the yarn steaming autoclave is fully automatic.

The control panel consists of

Micro processors based controller
Electrical control elements.

Safety Features :

Safety valves are provided on the autoclave vessel and the limpet coils. The autoclave vessel is hydraulically tested up to 7kg/cm^2.
Door interlock is provided with the vacuum pump and steam injection. Limit switch, fitted on the autoclave operates only when the door is fully locked and then only the steam injection is possible.
A second safety lever has to be engaged before the machines can be started. This prevents accidental opening of the door.
A pin actuated by a pneumatic cylinder, whenever the autoclave is pressurized, prevents the door from being opened.
If the lever is disengaged, which has to be done to open the door, then the entire machine will stop and pressure / vacuum will be released.

☰

× For Buying For Selling Post Product^Free Raise Your Complaint Post Requirement Verified Bussiness Buyer Product/Services Directory Share Your Feedback

Verified Bussiness Buyer & Seller | Post Your Product^Free | Product/Services Directory

Post Requirement Post Your Product ^Free

Automatic Yarn Heat Setting Machine, Capacity: 300

1200000 incl. GST

Automatic Grade	Automatic
Capacity	300 Kgs
Material	Stainless Steel
Warranty	12 Months
Production Capacity	300
Voltage	415 V
Working Pressure	5
Power	8 W
Shell Length	2000 mm
Temperature	130 Deg C
Useful Inner Diameter	1500 mm
Minimum Order Quantity	1 Piece

Feature

Automatic Grade	Automatic
Capacity	300 Kgs
Material	Stainless Steel
Warranty	12 Months
Production Capacity	300
Voltage	415 V
Working Pressure	5
Power	8 W
Shell Length	2000 mm
Temperature	130 Deg C
Useful Inner Diameter	1500 mm
Minimum Order Quantity	1 Piece

Description

Automatic Yarn Heat Setting Machine, Capacity: 300 Kgs in Thane

Overall Rating

☆☆☆☆☆

0 out of 5 (0 reviews)

Rating Distribution

5 ★

0 reviews

4 ★

0 reviews

3 ★

0 reviews

2 ★

0 reviews

1 ★

0 reviews

Last review on No reviews yet

Submit Your Review

find relevant seller for related products

Quick View

Aadarsh Technologies

Automatic Yarn Heat Setting Machine, Capacity: 300

Verified 2 Years 30 reviews

Manufacturer/Supplier

Mumbai

Plot No. Pap/r-339, Rabale, Midc, Rabale Mumbai - 400605, Maharashtra, India

Rs. 1200000 /per piece | Paid shipping Get Latest Price

Quick View

Om Sai Engineering

Yarn Heat Setting Machine, Capacity: 5 kg

Verified 3 Years 42 reviews

Manufacturer/Supplier

Mumbai

Plot No. Pap/r-339, Rabale, Midc, Rabale Mumbai - 400605, Maharashtra, India

Rs. 125000 /per piece | Paid shipping Get Latest Price

Quick View

New Kayson Engineers

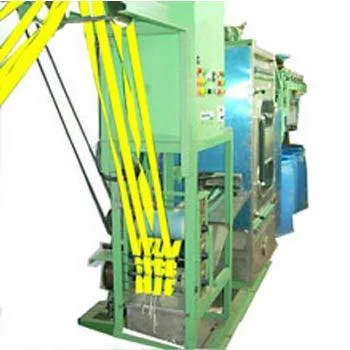

Continuous Heat Setting Machine
