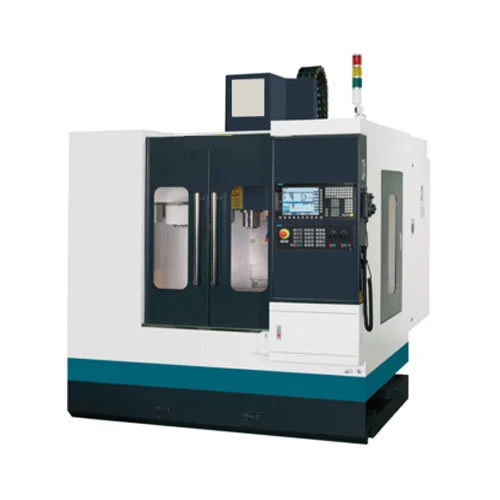

Automatic Vertical Machine Center
| CNC System | GSK 983 M Optional Fanuc / Siemens |
| Overall Dimension | 1600 x 1840 x 2110 mm |
| Net Weight | 1300 kg |
| Pneumatic Press | 0.6 mpa |
| Power Load(HP) | 5-10 HP |
| X Axis Travel | 500 mm |
| Spindle Center to Column Guide Way Face | 360 mm |
| Spindle Nose to Table | 120 to 520 mm |
| Z Axis Travel | 350 mm |
| Y Axis Travel | 320 mm |
| Machine Type | Automatic |
| Re Positioning Accuracy | 0.012 mm |
| T Slot NO Width Distance of Table | 3, 14, 100 |
| Max Loading Capacity of Table | 300 kg |
| Table Size | 800320 mm |
| High Speed Feeding of Z Axis | 24000 mm/min |
| Spindle Max Speed | 6000 to 10000 r/min (OPT) |
| Main Motor Rated Power | 3.7 kW |
| Max Length of Tools | 200 mm |
| Max Diameter of Tools | 100 mm |
| Spindle Nose Taper | BT30 |
| Usage | Industrial |
Feature
| CNC System | GSK 983 M Optional Fanuc / Siemens |
| Overall Dimension | 1600 x 1840 x 2110 mm |
| Net Weight | 1300 kg |
| Pneumatic Press | 0.6 mpa |
| Power Load(HP) | 5-10 HP |
| X Axis Travel | 500 mm |
| Spindle Center to Column Guide Way Face | 360 mm |
| Spindle Nose to Table | 120 to 520 mm |
| Z Axis Travel | 350 mm |
| Y Axis Travel | 320 mm |
| Machine Type | Automatic |
| Re Positioning Accuracy | 0.012 mm |
| T Slot NO Width Distance of Table | 3, 14, 100 |
| Max Loading Capacity of Table | 300 kg |
| Table Size | 800320 mm |
| High Speed Feeding of Z Axis | 24000 mm/min |
| Spindle Max Speed | 6000 to 10000 r/min (OPT) |
| Main Motor Rated Power | 3.7 kW |
| Max Length of Tools | 200 mm |
| Max Diameter of Tools | 100 mm |
| Spindle Nose Taper | BT30 |
| Usage | Industrial |
Description
With our expertise and trustworthiness, we are engaged in offering an optimum quality range of Automatic Vertical Machine Center.
