Automatic Textile Curing Machine, Model Name/Numbe

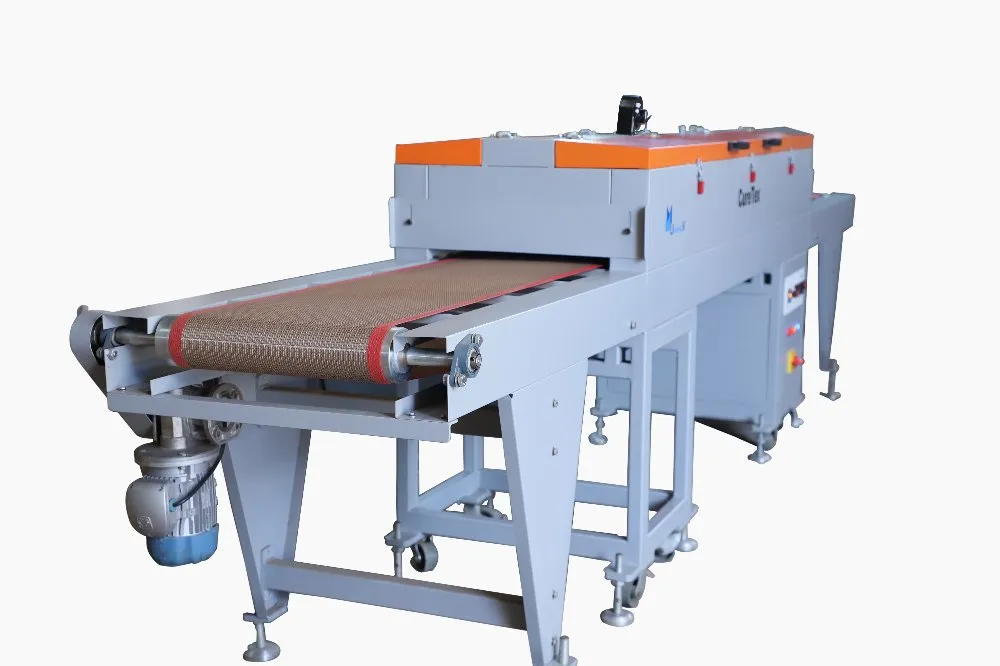

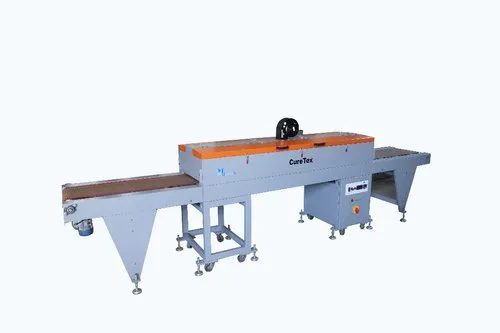

CureTex is specially designed for drying jobs printed with wide range of inks on textiles. Built for long life and maximum performance, CureTex is M/s.Umrao Automation Pvt. Ltd.’s premium ceramic dryer for screen printing dryer. It's available in belt widths from 16" to 60".

Not only does it have the highest production capacity in its class of conveyor dryers, it's also the most energy e cient as in this radiation heat transfer technology used which having 90-95% eficiency instead of less e cient convection heat transfer technology. Heavy duty thermal 50 MM thick with single side silver foil Rockwool insulation prevents heat from migrating into workplace. Entry and exit openings can be quickly and easily raised and lowered with convenient height adjustment.

Fast cure rates and high product throughput maximize conveyor dryer capacity and minimize per- unit cost. Suspended ceramic heater mounting panel is used which prevents from heat dissipaon to adjacent machine parts & metal cabinet.

Proportional Integral Di erential (PID) control allows the dryer to power up gradually to avoid maximum amperage loads during initial warm-up. Thyrister power regulator with PID controller helps maintain even temperatures during production by controlling electric  ow rather than using the full-load/no-load approach.

PID control ensures consistency by keeping dryer chamber heat within 1° Celsius of target temperature at thermocouple.

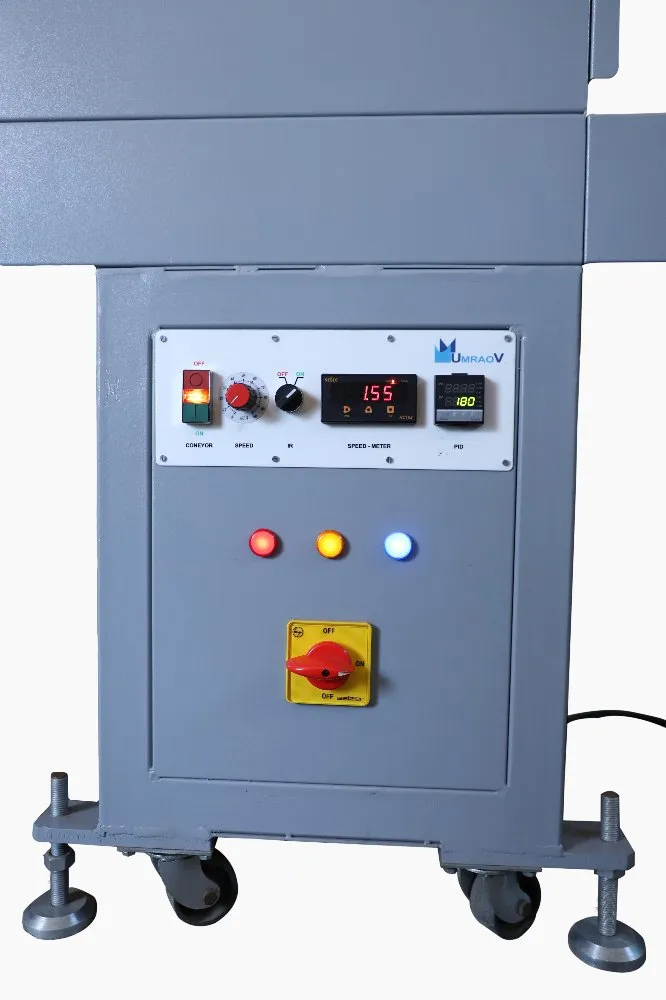

The control panel allows easy monitoring and

Adjustment of temperature, and belt speed settings. Reliable, heavy-duty, variable-frequency AC-drive geared motor powers CureTex's heat resistant Te on-coated  ber glass conveyor belt with crowned roller system. Crowned rollers ensures accurate belt alignment and counters e ects of de ection.

Automatic shutdown sequence keeps the blower and belt running until the conveyor dryer chamber has cooled.
Air cooled cabinet ensures long life for electrical components. Easy & at low cost spare parts available. The dryer is completely portable in design for ease of mobility or it can be anchored to the  oor with its own foundation bolts for a more permanent location.
