Automatic Silicone Dispenser

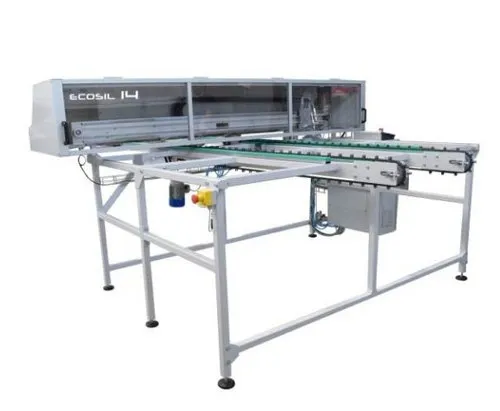

ECOSIL 14 is an automatic machine developed to put in automatic way an even and correct amount of silicone or (optional) two component glue in the frame that later will be installed around the photovoltaic module. The machine is composed by a load unit that feeds the frames to the silicone station that after applying the silicone on the frame pushes it to the operator. It is possible to select from the operator panel a working condition that permits to drill holes in the frames for humidity outlet (optional). In this case the drilling is done automatically before pushing the frame to the unload belt. The machine has a sensor that reads the state of the unload station in order to interrupt the cycle automatically when the belt is full.

• High accuracy
• Touch screen operator's panel
• Minimum frame length: 350mm
• Maximum frame length: 2000mm
