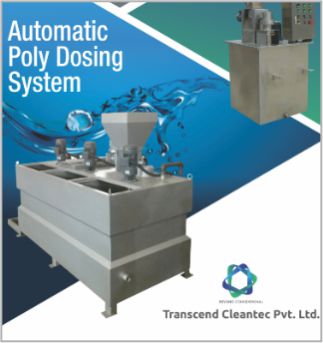

Automatic Poly Dosing System (TAPDS)

incl. GST
  • POLYMER DOSING SYSTEM DS CAPACITY (Kgds/h) POLYMER PUMP - FLOW & HEAD
    AUTO POLYMER DOSING
    TAPDS-250 1-3 0-20L/h P-1.0MPa
    TAPDS-500 5-7 Q=30L/h P=1.0MPa
    TAPDS-500 10-14 0-50L/h P=1.0MPa
    TAPDS-500 20-28 Q-100L/h P-1.0MPa
    TAPDS-500 15-20 Q-90L/h P-1.0MPa
    TAPDS-500 30-40 Q=150L/h P=1.0MPa
    TAPDS-500 45-60 Q=270L/h P=1.0MPa
    TAPDS-500 50-70 Q=300L/h P=1.0MPa
    TAPDS-1000 100-140 Q=600L/h P=1.0MPa
    TAPDS-1000 150-210 Q-900L/h P=1.0MPa
    TAPDS-1500 200-280 Q=1200L/h P=1.0MPa
    TAPDS-500 100-120 Q=300L/h P=1.0MPa
    TAPDS-1000 200-240 Q=600L/h P=1.0MPa
    TAPDS-2000 300-360 Q-900L/h P=1.0MPa
    TAPDS-3000 400-480 Q=1200L/h P=1.0MPa
    TAPDS-1000 130-160 Q-900L/h P=1.0MPa
    TAPDS-2000 260-320 Q=1.8m3/h P=1.0MPa
    TAPDS-3000 390-480 Q=2.7m3/h P=1.0MPa
    TAPDS-4000 520-640 Q=3.6m3/h P-1.0MPa
    TAPDS-2000 260-320 Q=1.7m3/h P=1.0MPa
    TAPDS-3000 390-480 Q=3.4m3/h P=1.0MPa
    TAPDS-5000 390-480 Q-5m3/h P=1.0MPa
    APDS-7000 520-640 Q=7m3/h P=1.0MPa
Feature
  • POLYMER DOSING SYSTEM DS CAPACITY (Kgds/h) POLYMER PUMP - FLOW & HEAD
    AUTO POLYMER DOSING
    TAPDS-250 1-3 0-20L/h P-1.0MPa
    TAPDS-500 5-7 Q=30L/h P=1.0MPa
    TAPDS-500 10-14 0-50L/h P=1.0MPa
    TAPDS-500 20-28 Q-100L/h P-1.0MPa
    TAPDS-500 15-20 Q-90L/h P-1.0MPa
    TAPDS-500 30-40 Q=150L/h P=1.0MPa
    TAPDS-500 45-60 Q=270L/h P=1.0MPa
    TAPDS-500 50-70 Q=300L/h P=1.0MPa
    TAPDS-1000 100-140 Q=600L/h P=1.0MPa
    TAPDS-1000 150-210 Q-900L/h P=1.0MPa
    TAPDS-1500 200-280 Q=1200L/h P=1.0MPa
    TAPDS-500 100-120 Q=300L/h P=1.0MPa
    TAPDS-1000 200-240 Q=600L/h P=1.0MPa
    TAPDS-2000 300-360 Q-900L/h P=1.0MPa
    TAPDS-3000 400-480 Q=1200L/h P=1.0MPa
    TAPDS-1000 130-160 Q-900L/h P=1.0MPa
    TAPDS-2000 260-320 Q=1.8m3/h P=1.0MPa
    TAPDS-3000 390-480 Q=2.7m3/h P=1.0MPa
    TAPDS-4000 520-640 Q=3.6m3/h P-1.0MPa
    TAPDS-2000 260-320 Q=1.7m3/h P=1.0MPa
    TAPDS-3000 390-480 Q=3.4m3/h P=1.0MPa
    TAPDS-5000 390-480 Q-5m3/h P=1.0MPa
    APDS-7000 520-640 Q=7m3/h P=1.0MPa
Description

The automatic polyelectrolyte preparation and dosing system consists of a rectangular tank divided into three compartments

First compartment, for dilution, is complete with polyelectrolyte loading hopper, micro-screw dispenser and relevant variable speed drive, fast mixer for the polyelectrolyte mixing, inflow system for the dilution water and solenoid valve, flow meter. The mixing chamber with the a vigorous flow of water starts the initial mixing.

Second compartment,for the polyelectrolyte mixture maturation & homogenization, is equipped with slow mixer and bottom suction and drain system

The third compartment, for maturation and storage, is used for storing the mixture. It is provided with a slow mixer, suction and delivery system for the polyelectrolyte solution.
