Automatic Milk Flow Meter
| Milk Extraction Applicable To | any |
| Automation Grade | Automatic |
| Design Type | Fixed |
| Accuracy | 1% |
| Flow range | 3-80 liter per minute |
| Weight | 1.2 Kg |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 Piece |
Feature
| Milk Extraction Applicable To | any |
| Automation Grade | Automatic |
| Design Type | Fixed |
| Accuracy | 1% |
| Flow range | 3-80 liter per minute |
| Weight | 1.2 Kg |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 Piece |
Description

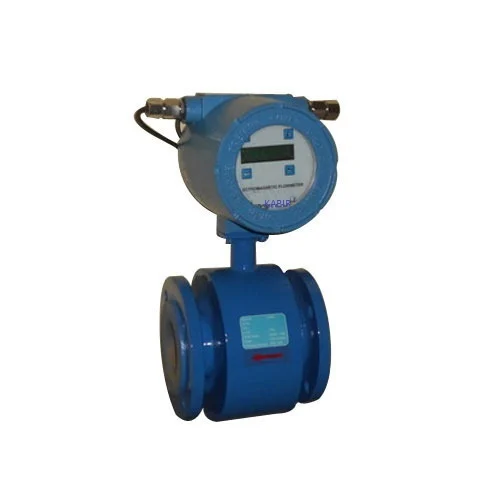

“KABIR” make versatile Electromagnetic flow meter is ideal for conductive liquids such as Raw Water, Chilled water, effluents, Potable water etc. Using time proven electromagnetic flow metering principle, the meter achieves a flow meter for pipes from 15mm to 600mm. Since there are no moving parts, the flow meter gives years of maintenance free service.
“KABIR” flow-head can be supplied in Teflon lining or Hard Rubber lining is available with all the features required in a field mounted water metering equipment. These include - weatherproof enclosure, communication options, RTC with data logging with printer option and 4 to 20 mA isolated Flow signal transmission option for flow pattern recording. The converter is available as field mounted-IP65 protection category. GSM modem interface can also be supplied as an optional add-on feature. The operating principle of Magnetic flow meters is based upon Faraday's Law of electromagnetic induction, “It state that a voltage will be induced in a conductor moving through a magnetic field”.
Where E = Induced Voltage, B = Strength of the magnetic field, D = Conductor Width, V = Velocity of the conductor
The magnitude of the induced voltage E is directly proportional to the velocity of the conductor width D, and the strength of the magnetic field B. Liquid acts as a conductor as it flows through pipes. These Flowmeters find varied applications where the flowing medium is difficult to handle.
A major advantage of these flowmeters is Zero pressure drop, No moving part and highest accuracy level at most affordable cost. Some of the major application can be described below :
Effluent Treatment Plant, Sewage Treatment Plant, Water supply Schemes, Pulp and Papers, Sugar industries and Distilleries, Steel and Aluminium, Chemical / Pharmaceuticals, Food, and Drugs etc.
Tolerates High percentage of suspended solids Sludge, slurries, minerals, paper, sewage – flows with the high level of solids which can not be measured other type of meters. Obstruction fewer measurements Nothing projects into the flow stream, no head loss, no parts to maintain.
Suitable for corrosive liquid Acids, caustic and corrosive additives are isolated from the meter pipe by inert linings and compatible electrodes. Suitable for all types of electrically conductive liquids. Liquid where conductivity is of sufficient level to induce measurable.
Additional Information
| Item Code | MFM-009 |
| Delivery Time | within a week |
| Port Of Dispatch | Mumbai |
| Production Capacity | 100 |
| Packaging Details | WOODEN CAGES & BUBBLE SHEET. |
