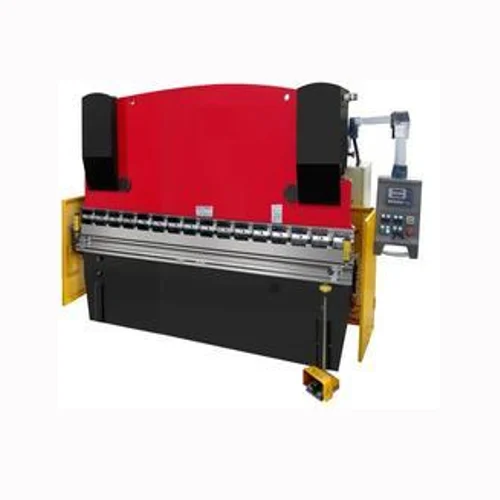

Automatic Hydraulic Press Brake, For Sheet Bending
| Usage/Application | Sheet Bending |
| Material | Mild Steel |
| Brand | Pentagon |
| Cutting Load | 30 Ton |
| Control Type | NC Control |
| Automatic Grade | Automatic |
| Max Sheet Width | 2 meter |
| Minimum Order Quantity | 1 |
Feature
| Usage/Application | Sheet Bending |
| Material | Mild Steel |
| Brand | Pentagon |
| Cutting Load | 30 Ton |
| Control Type | NC Control |
| Automatic Grade | Automatic |
| Max Sheet Width | 2 meter |
| Minimum Order Quantity | 1 |
Description
Nominal Pressure - 630(kn)
Worktable Length(mm)- 2500mm
Column Spacing - 1900
Throat Depth - 250
Stroke - 100
Open Hight - 320
Motor - 5.5kw
Weight - 4000Kg.
Dimensions - 4000x1500x2400
