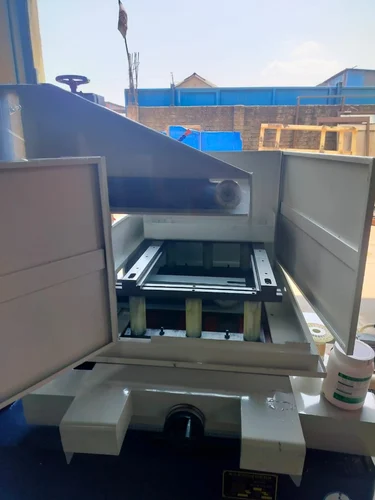

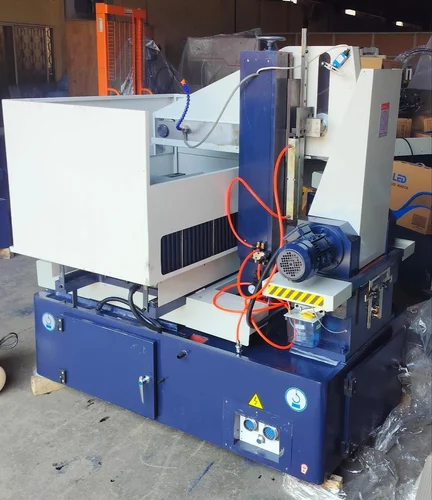

Automatic CNC Wire Abrasive Cut Machine

950000 incl. GST

It is Widely used for cutting graphite electrodes, epoxy plate, hard alloy, marble, jade, optical glass, ceramics, ferrite, semiconductor materials, carbonized silicon and other non conductive material.

Feature
Model Name/Number FQT3240
Machine Type ABRASIVE WIRE CUT
Automatic Grade Automatic
Brand Fostex
XY Motor Stepper Motor
Control Cabinet Vertical
Roughness Ra 0.8-2.0
Pluse Equivalency 0.001 mm
Abrasive Wire Dia 0.35 mm
Software HL/HH/Autocut Software
Weight 1000 kg
Power 2.0 kVA
Control Cabinet Dimension 750x680x1650 mm
Movement for Hand Wheel Per Cycle 1 mm
Description

It is Widely used for cutting graphite electrodes, epoxy plate, hard alloy, marble, jade, optical glass, ceramics, ferrite, semiconductor materials, carbonized silicon and other non conductive material.

Related Products
Pulse Jet Type Centralized Dust Collector System,

Product Description

We provide our customers with highly efficient Dust Collector System which is designed to control smoke/dusting in operating area, thus maintaining a healthy working atmosphere. It consists of exhaust hood, ducting, suction fan and dust collector (Filter). With this System canassure a Healthy working atmosphere

...
CNC Wire Cut EDM Machine

We are offering CNC Wire Cut EDM Machine. Wire EDM is a method to cut conductive materials with a thin electrode that follows a programmed path. The electrode is a thin wire. The hardness of the work piece material has no detrimental effect on the cutting speed. It is widely used in die making, heat treated material.

...
Gutter Roll Forming Machine

The Roll forming machine can Manufacturing a various kinds of gutters profile to satisfy customers’ required. Produced gutters are in fashionable outline and high superiority. Gutters are so mostly used in our daily life, so this machine will surely bring you a lot of profitable benefits to you.D coiler 5 ton cap.Punching press 20 tone 2 nos.Entry Gate with Roll Forming Line with 14 station , 7 Gear Boxes & 10 H.P. electrical. Control Panel semi auto Cutting Unit (Hydro.)

Technical Specifications:


  • Maximum sheet width that can be formed : 450mm
  • Maximum sheet thickness in CRCA Strips that can be formed : 3 mm(M.S.)
  • Horizontal distance between shafts : 400mm
  • Number of forming stations : 14 nos.
  • Vertical station : 12 nos.
  • Total HP for Line : 16
  • Speed of the machine : 4mt/minit
  • Size of machine : 6300 x 1200 x 1000 mm


Mandrel Uncoiler:


  • Coil weight : 10 MT Max
  • Coil width : 400 MM
  • Coil bore : 450 MM min, 510 MM max dia.
  • Mandrel movement : Manually adjusted
  • Back Tension : Manually adjusted


Punching press:


  • 20 tone power press
  • 2 nos. 3 HP


Entry Gate:


  • Entry gate will be provided for movement of sheet to roll former.


Main Base:


  • The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.


Mill stands (Station:


  • The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.


Roll shafts:


  • The roll shafts dia. 55mm will be manufactured from quality steel and will be keyed to locate tooling.


Drive:


  • The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 10 HP motor


Tooling:


  • One set of Tooling with EN31 grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.


Cutting Unit (Hydro):


  • Hydraulically operated power pack along with cutting die with 3 HP electrical.
...
