Automatic Bundle Fibre Length & Strength Tester
| Material | Cotton,Polyester or ANY short staple fibre |
| Automation Grade | Automatic |
| Model Name/Number | Fibrotest |
| Tensile Strength | strain gauge with force range of 500 N,gauge length 3 to 20 mm |
| Test Speed | draw-off speed 1 to 1000 mm / min |
| Mode | HVI or ICC or Direct Mode |
| Length Testing | Optical system with laser light and line camera; scanning width 60 mm,max. travel 50 mm |
Feature
| Material | Cotton,Polyester or ANY short staple fibre |
| Automation Grade | Automatic |
| Model Name/Number | Fibrotest |
| Tensile Strength | strain gauge with force range of 500 N,gauge length 3 to 20 mm |
| Test Speed | draw-off speed 1 to 1000 mm / min |
| Mode | HVI or ICC or Direct Mode |
| Length Testing | Optical system with laser light and line camera; scanning width 60 mm,max. travel 50 mm |
Description
Present testing instruments are either purely manually-operated devices for each of the two test methods, or fully automatic “high-volume” test stations (HVI). The latter employ measuring systems which have to be calibrated using so-called calibration cotton. For this reason all measured results depend on the data of the calibration cotton as specified by its supplier. They are not directly traceable to physical base units.

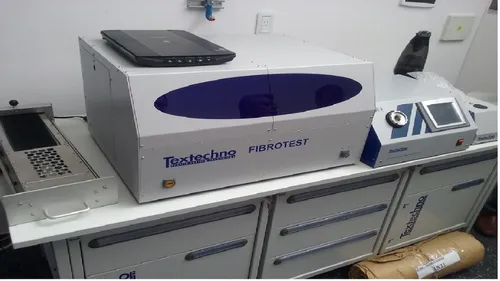

FIBROTEST of Textechno incorporates both fibre length measurement and fibre strength test within the same instrument. The two measurements – at first fibre length and thereafter fibre strength – are executed in succession on the same sample. After completing these measurements the sample mass between the clamps is automatically determined, which enables the calculation of the exact and absolute value of tenacity. Operation of the FIBROTEST does not require calibration cotton and is, therefore, independent of any influences from this side. Nevertheless the system can be calibrated with calibration cotton to duplicate HVI results.
Technical data

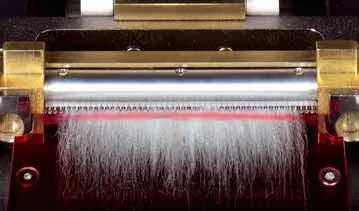

- Preparation of the fibre bundle with comb-type sample holder;
- Optical system with laser light and line camera scanning the fibre bundle in longitudinal direction, scanning width 60 mm, max. travel 50 mm;
- Tensile strength- and elongation measuring system with automatically operated pneumatic clamps, draw-off clamp on motor-driven traversing carriage, strain gauge with force range of 500 N, gauge length 3 … 20 mm, draw-off speed 1 … 1000 mm / min;
- Automatic determination of sample weight between clamps.
