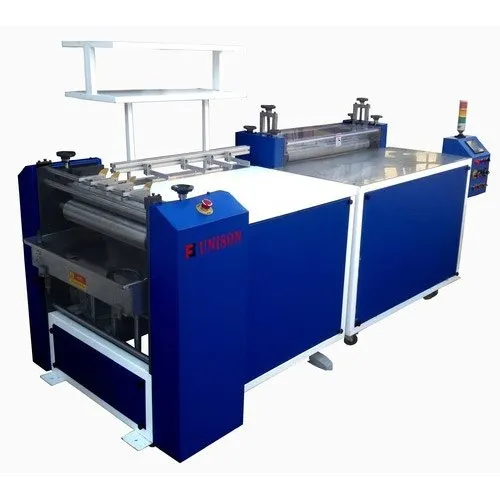

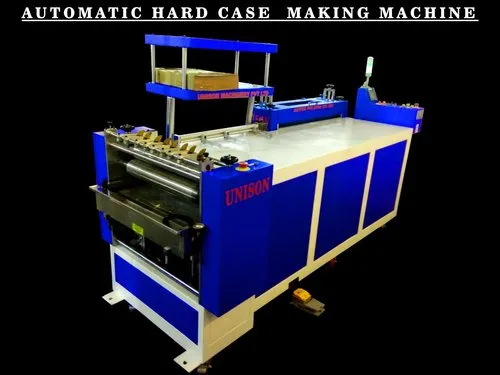

We are manufacturer of case making machine with auto folding . This machine is thoroughly manufactured at our ultra-modern manufacturing unit using the superior quality components and innovative technology in compliance with defined quality standards.
| Automation Grade | Automatic |
| Production Capacity | 300 Case Per Hr Approx |
| Brand | Unison |
| Power Consumption | 5 HP |
| Material | SS |
| Board Thickness | 1.5 mm - 5 mm |
| Dimensions | 2800 (L) x 1055 (W) x 890 (H) mm |
| Turning In Width | 15 mm -30 mm |
| Weight | 700 kg |
| Paper Thickness | 60 gsm -170 gsm |
| Max. Case Size | 500 mm x 850 mm |
| Min. Case Size | 100 mm x 160 mm |
| Model Name/Number | CM-400 |
| Country of Origin | Made in India |
We are manufacturer of case making machine with auto folding . This machine is thoroughly manufactured at our ultra-modern manufacturing unit using the superior quality components and innovative technology in compliance with defined quality standards.
Grinding of Various types materials ie: Tyres, MSW to RDF, Non-Ferrous Metals, Electronic Scrap, Carpet, Plastic etc
...
This Multiline Radial Lubricator provides a compact unit for delivered soft grease or heavy oil under pressure to a given number of different bearing points. It is ideal for lubricating machinery which require regular shots of predetermined quantity of lubricant forced into each individual bearing under pressure.
Applications: Multiline radial lubricator is best suited for machine / plant where lubrication is required with high pressure continuously / intermittently for individual point. The lubricator are used for machine / plant like rolling mill, sugar plant, cement plant, rubber mixing machine, forging hammer, stone crusher, sponge iron plant etc.
Filling of Lubricants: Grease filling in the reservoir can be done manually as well as with the help of other pump. For pump 1/4" BSP port is provided on reservoir.
Instructions:
Always use proper and clean lubricants, Avoid foreign particles in the pump. The foreign particles or dust items are the main responsible factor to damage physical components of the pump and chocking in the plunger body. Always fill the lubricants before it is empty to avoid air in the pump. The presence of air may be resulted in improper quantity of discharge.
Should always carefully with regular maintenance of plungers and reservoir for its long life. Do not plug out out of any pumping unit.
Technical Specifications:
|
Model |
RL-1.5-4 |
RL-5-6 |
RL-15-12 |
RL-30-20 |
RL-70-30 |
|
Reservoir Capacity in Kg. |
1.5 |
5 |
15 |
30 |
70 |
|
No. of Outlets (Pumps Elements) |
4 |
6 |
12 |
20 |
30 |
|
Motor 3Phase, 415V AC, 4 Pole |
0.25 HP |
0.25 H.P |
0.50 H.P |
1.00 H.P |
1.50 H.P |
|
Delivery pressure Dose of Pump / Cycle (Adjustable) ReductionRatio of Drive |
250 kg/cm2 maximum 0.05 cc to 0.25 cc/Stroke / Pump (max. 5 gm/min.) 70:1) |
||||
Enriched by our vast industrial experience in this business, we are involved in offering an enormous quality range of Front Loaded Rotary Cabinet Washer.
...
Mild Steel Double Sprocket Tapered Roller Conveyor Belt Cutting Machine, Capacity: 300 kg/hr in pune
...
