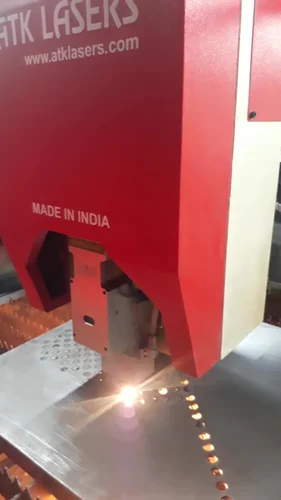

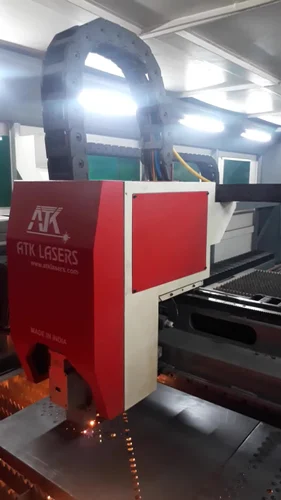

ATK LASERS 1000 W Laser Metal Cutting Machine, Mod
| Model Name/Number | ATK-ELITE 1530 |
| Usage/Application | Industrial Metal Cutting |
| Brand | ATK LASERS |
| Automation Grade | Semi-Automatic |
| Laser Power | 1000 W |
| Cooling Method | Water cooled |
| Voltage | 415V |
| Frequency | 50 Hz |
| Weight | 2000 kg |
| Phase | 3 |
| Positioning Accuracy | +-0.01 mm/m |
| Repositioning Accuracy | +-0.05 mm |
| Max Positioning Speed | 100 m/min |
| Z Axis Stroke | 150 mm |
| Y Axis Stroke | 3000 mm |
| X Axis Stroke | 1500 mm |
| Country of Origin | Made in India |
Feature
| Model Name/Number | ATK-ELITE 1530 |
| Usage/Application | Industrial Metal Cutting |
| Brand | ATK LASERS |
| Automation Grade | Semi-Automatic |
| Laser Power | 1000 W |
| Cooling Method | Water cooled |
| Voltage | 415V |
| Frequency | 50 Hz |
| Weight | 2000 kg |
| Phase | 3 |
| Positioning Accuracy | +-0.01 mm/m |
| Repositioning Accuracy | +-0.05 mm |
| Max Positioning Speed | 100 m/min |
| Z Axis Stroke | 150 mm |
| Y Axis Stroke | 3000 mm |
| X Axis Stroke | 1500 mm |
| Country of Origin | Made in India |
Description
- CNC bed is designed with special steel grade to enable highest accuracy machining
- Light alloy beam (X axis) to provide high dynamic performance. The optical path changes while the sheet remains still, thus the processing efficiency is high
- X, Y axis adopts high quality gear and rack, reduction gear, ensuring life and precision for a long time
- The system is equipped with section dust collector to improve the working environment. The area beneath the cutting table is divided into several sections. During the cutting process, only the ducts directly beneath the cutting head are open for fume extraction. The ducts in the other sections remain closed to improve dust collection
- Equipped with 3 KW fiber laser. Wall-plug efficiency is 30% or higher and no need of gas. The efficiency of cutting within 16 mm thickness is 80% higher than that of CO2 Laser. The comprehensive cost is much lower. The transmission of the laser beam depends on the fiber without any mirror. The Laser structure is small and compact with high reliability
- All servo motors are with incremental Encoder
- High torque planetary servo gearbox used
- CNC Controller with fly cutting and piercing option, In-process key parameters change option, In-process key parameters change option
- Auto-nesting software with free form nesting function
- High quality precision auto focus cutting head
- Advanced pneumatic systems are used
- Lubrication for all guides and rails are protected by bellows
- High quality special fiber laser chillier unit
