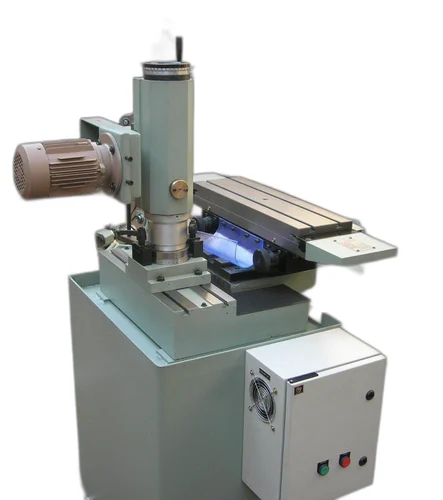

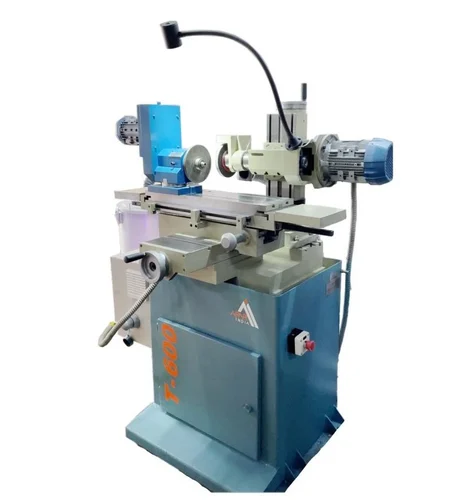

APAR T 600 Tool & Cutter Grinding Machine
| Type of Tool and Cutter Grinder | Universal |
| Brand | APAR |
| GRINDING SPINDLE SPEED (optional AC drive) | 2500 - 6000 RPM |
| GRINDING SPINDLE SPEED | 3600 RPM |
| LEAST COUNT OF X & Y GRADUATIONS | 0.01MM / 0.02MM |
| SWIVEL RANGE OF TOP WORKTABLE | 90 DEGREE EACH SIDE |
| GRINDING MOTOR | 1.0 HP, 3 PHASE |
| C.D. OF | 90 MM |
| DIMN. OF WOODEN PACKING CASE (H X W X T) | 1650 X 1140 X 1020 |
| NET WEIGHT (APPROX.) | 550 KGS. |
| SWIVEL RANGE OF HEAD PILLAR | 360 DEGREE |
| HEAD SWIVEL RANGE (FOR TILTING HEAD MODEL) | 15 DEGREE EACH SIDE |
| PILLAR SHIFTING RANGE ON REAR SURFACE | 540MM APPROX. |
| SPINDLE VERTICAL SHIFTING AREA BY DOUBLE SLIDE (OPTIONAL | 200MM |
| Max Length Between Extended Centres | 600mm |
| Max Length Between Standard Centres | 425mm |
| Floor Area Covered | 740 X 860 MM |
| Longitudinal Traverse | 450MM |
| Surface of Work Table | 600mmx180mm |
| MAX. LENGTH BETWEEN STANDARD CENTRES | 425MM |
| VERTICAL TRAVERSE | 175MM |
| SURFACE OF WORKTABLE | 600MM X 180MM |
| MAX. LENGTH BETWEEN EXTENDED CENTRES | 600MM |
| Cross Tranverse | 175MM |
Feature
| Type of Tool and Cutter Grinder | Universal |
| Brand | APAR |
| GRINDING SPINDLE SPEED (optional AC drive) | 2500 - 6000 RPM |
| GRINDING SPINDLE SPEED | 3600 RPM |
| LEAST COUNT OF X & Y GRADUATIONS | 0.01MM / 0.02MM |
| SWIVEL RANGE OF TOP WORKTABLE | 90 DEGREE EACH SIDE |
| GRINDING MOTOR | 1.0 HP, 3 PHASE |
| C.D. OF | 90 MM |
| DIMN. OF WOODEN PACKING CASE (H X W X T) | 1650 X 1140 X 1020 |
| NET WEIGHT (APPROX.) | 550 KGS. |
| SWIVEL RANGE OF HEAD PILLAR | 360 DEGREE |
| HEAD SWIVEL RANGE (FOR TILTING HEAD MODEL) | 15 DEGREE EACH SIDE |
| PILLAR SHIFTING RANGE ON REAR SURFACE | 540MM APPROX. |
| SPINDLE VERTICAL SHIFTING AREA BY DOUBLE SLIDE (OPTIONAL | 200MM |
| Max Length Between Extended Centres | 600mm |
| Max Length Between Standard Centres | 425mm |
| Floor Area Covered | 740 X 860 MM |
| Longitudinal Traverse | 450MM |
| Surface of Work Table | 600mmx180mm |
| MAX. LENGTH BETWEEN STANDARD CENTRES | 425MM |
| VERTICAL TRAVERSE | 175MM |
| SURFACE OF WORKTABLE | 600MM X 180MM |
| MAX. LENGTH BETWEEN EXTENDED CENTRES | 600MM |
| Cross Tranverse | 175MM |
Description
We are the manufacture and export a comprehensive range of T-600 Tool & Cutter Grinder, which is based on the customary guidelines. Thus our range is precision designed that ensures simple operation and highly economical. The APAR T-600 is appreciated for their additional quality features of T-480. Some of the highlighting features of our range are given below:
More robust spindle assembly
Substantially heavier linear roller guide ways
Extra stable machine base
Double "T" slot on worktable
Dual 'rear' hand wheels for better maneuverability
Optional variable speed A.C. drive for regulating the spindle speed
