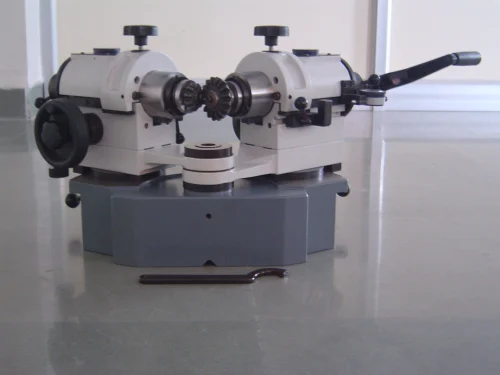

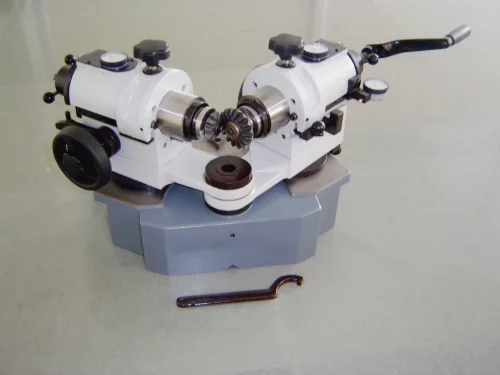

Analog White Bevel Gear Tester KIPL 140, Packaging Type: Wooden Box

490000 incl. GST

BEVEL GEAR TESTER : KIPL 140
The Bevel Gear Tester is useful for inspection of bevel gears in double flank method. The measurement of clearance of gear flanks and detection of bearing areas, inspection of composite error and checking of assembly distances are the applications of this instrument. Maximum bevel gear diameter 140 mm. Angle adjustment of axes 50° to 140°. Bevel Gears with min. assembly distance of 35 mm and Maximum assembly distance of 140 mm can be inspected,also bigger model 200 mm available on demand.

Feature
Material Mild Steel
Model Name/Number KIPL- 140
Usage/Application For Checking Total Composite Error, Tooth To Tooth Error Of Helical And Spur Gears
Type Of Testing Machines Precision Measuring
Color White
Packaging Type Wooden Box
Display Type Analog
Brand Kudale Instruments
Grade Manual
Weight 150 kg
Gear Width 140 mm
Dimensions (W x H x D) 700mm x 480mm x 320mm
Minimum Order Quantity 1 Piece
Description

BEVEL GEAR TESTER : KIPL 140
The Bevel Gear Tester is useful for inspection of bevel gears in double flank method. The measurement of clearance of gear flanks and detection of bearing areas, inspection of composite error and checking of assembly distances are the applications of this instrument. Maximum bevel gear diameter 140 mm. Angle adjustment of axes 50° to 140°. Bevel Gears with min. assembly distance of 35 mm and Maximum assembly distance of 140 mm can be inspected,also bigger model 200 mm available on demand.
