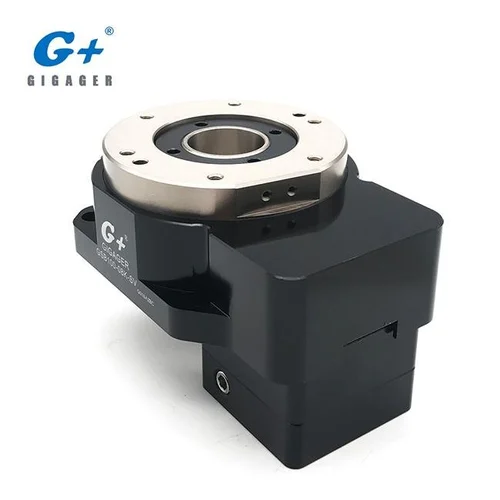

Aluminum Casting GSB130 Rotary Table
| Material | Aluminum Casting |
| Max Bearing Diameter | OD 115 mm |
| Table Weight | 3.83 Kg without motor |
| Angle Range | 360 Deg |
| Transmission Ratio | 181 |
| Actuator Type | Helical Gear |
| Surface Treatment | Black Coating or Painting |
| Motor | Stepper Motor / Servo Motor |
| Travel Guide | Bearing |
| Protection Class | IP 65 |
| Parallelism of Output Table | 25 microns |
| Output Permisible Speed | 300 rpm |
| Maximum Torque | 3 Times of Rated Output Torque |
| Rated Output Torque | 43 Nm |
| Backlash | Less than 1 arc min |
| Permissible Thrust Load | 1450 N |
| Runout of Output Table Surface | 15 microns |
| Moment of Inertia | 2.918 x 10-6 kg.m2 |
| Permissible Moment Load | 30 Nm |
| Model | GSB130 |
Feature
| Material | Aluminum Casting |
| Max Bearing Diameter | OD 115 mm |
| Table Weight | 3.83 Kg without motor |
| Angle Range | 360 Deg |
| Transmission Ratio | 181 |
| Actuator Type | Helical Gear |
| Surface Treatment | Black Coating or Painting |
| Motor | Stepper Motor / Servo Motor |
| Travel Guide | Bearing |
| Protection Class | IP 65 |
| Parallelism of Output Table | 25 microns |
| Output Permisible Speed | 300 rpm |
| Maximum Torque | 3 Times of Rated Output Torque |
| Rated Output Torque | 43 Nm |
| Backlash | Less than 1 arc min |
| Permissible Thrust Load | 1450 N |
| Runout of Output Table Surface | 15 microns |
| Moment of Inertia | 2.918 x 10-6 kg.m2 |
| Permissible Moment Load | 30 Nm |
| Model | GSB130 |
Description
They are characterized by a whole new machine concept and design approach, allowing flexible use. All components are freely programmable and represent sound solutions for re-engineering. It could be added planetary gearbox to increase the gear ratio, available for matching with any brand servo motor and stepper motor based on our flexible flange system, thus make it easy for automation production line building and robot designing.
IP rated rotary tables provide more possibilities for humidity and dusty environment in actual working conditions, like CNC drilling work, CNC grinding work, laser marking and laser cutting work, etc.
High precision and excellent IP rated performance makes the high precision and accuracy work possible, such as diamond cutting rotary task, phone production and inspection rotary task, etc.
Features with various central openings easy for wiring and pneumatic piping. Abundant models offer more choices for different loading and speed requirement ranges from small torque to large torque.
Flexible flange system provides more options for users to connect servo motor, servo step motor and stepper motor.
