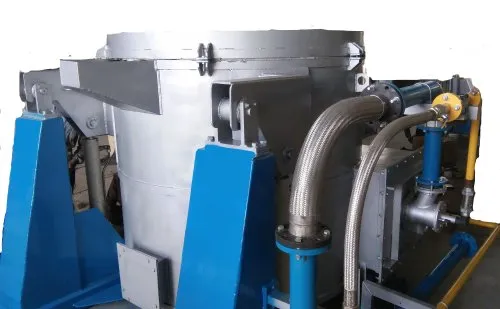

Melting Material | Aluminium |
Material Loading Capacity (T) | 100-1000kg |
Power Source | Gas |
Type Of Furnace | Tilt |
Auto Duct Forming Line – FS-1500 is a state-of-art, fully automatic coil line. It can perform all operations required to make straight rectangular ducts. It uses PLC based control system and AC Servo Motor for high accuracy and power. The notching heads, folding and shearing is hydraulically operated. It comes with powered decoilers (two on single stand) of capacity 1500 mm x 6 tons. One can add-on more decoilers if required.The design also make coil loading and unloading very easy. Optionally, we offer strong 1500 mm x 4 tons capacity decoiler in standard “A” frame design. This is a free standing, free rotating design.
Smartly designed beading & straightening station is easy to handle and produces very precision coil movement. The standard beading head provides 5 Nos.U shaped SMACNA beads. The Head is powered by AC servo Motor for very precision movement of sheet metal. Easy to operate beading and straightening station can be adjusted just by rotating handles at one end.Notching heads are equipped with “V” and Corner notch punches for TDC, TDF, ‘C’ Cleat, ‘S’ Cleat, Knock-On Flanges, Pittsburgh and Snap Lock.
Unlimited coatingThe PVD coating plant of Grenzebach sets standards worldwide. Our fully automatic PVD coating systems enable the production of all state-of-the-art coating systems - from solar control to high-end low-E layer stacks. Configured specifically for customer needs, they make possible everything that is conceivable in the area of coating.In this area, we offer two different plant types for different glass plates
...The Chlorine Gas Leakage Detection Absorption Neutralization System is a safety device which reduces the risk the risk of chlorine gas spreading into atmosphere. It automatically controls and absorbs heavy leaks from 100 kg or from 900 kg ton containers to absorb in caustic solution, thus creating hypo chlorine that can be reused or to be used as a cleaning agent. The neutralizing system consists of a blower, absorption tower packed with rasching rings, an alkali (NaOH) tank, alkali circulation pump, piping valves and light weight FRP and PVC duct. In case of an uncontrollable leak, this system allows the person to breathe easily instead of panic. The leak is confined by the hood, which covers the container, sucks the chlorine by blower and thus delivering it to the absorption tower. The leak absorption capacity of the system is 100 kg/hr & 200 kg/hr for 100 kg cylinder and 900 kg tonner respectively.
Introduction The chlorine gas leakage absorption is a safety device which reduce the risk of chlorine gas spreading into atmosphere from 100 kg cylinder or from ton containers to absorb in caustic solution creating hypochlorine and can be reused or use as cleaning agent. There are two types of absorption systems.
Features:
Planetary Mixer with Triple Layer Tank S.S. 316 With Heating Insulation Rs:-3,25 ,000/-
· With Vacuumed System with pressure gauge ,
· Capacity 180Kg
· Working capacity 100kg.
· With Emulsifier Mixer.
· 2hp motor 3phase 2800 RPM (For Emulsifier In Bottom )
· 2hp motors 3 phase 1440RPM (For Planetary Mixer with 2 hp AC Drive )
· With Heavy Duty Gear Box
· Up & Down system Automatic.
· Tank O.D. 20” inch
· Tank Height 22” inch
· Total Height 40” inch
· Inner Layer S.S 316
· Wall Thickness 6MM S.S 316
· Second Layer M.S
· Third Layer S.S 304
· 4 k.w. 2 Heater
· With Heating Sensor.
· With Digital Control Panel
· With Legs and Height Adjuster
· All contact part made of S.S. 316
