Acrylic Collimator Test Tool and Beam Alignment Test Tool
| Model Name/Number | NA |
| Material | Acrylic |
| Weight | 180 g,250g |
| Height | 15.2 cm,21cm |
| Shape | Cylinder |
| Type | Transparent |
| Diameter | 7.5 cm,25cm |
Feature
| Model Name/Number | NA |
| Material | Acrylic |
| Weight | 180 g,250g |
| Height | 15.2 cm,21cm |
| Shape | Cylinder |
| Type | Transparent |
| Diameter | 7.5 cm,25cm |
Description
Evaluate collimator light field and x-ray field congruence plus ensure accurately x-ray beam alignment.
The Apt X-101 Collimator Test Tool is designed to evaluate the collimator light field and x-ray field congruenceaccording to the AERB specifications.
The Apt X-101 is constructed of etched Glass Epoxy material so that centimetre etchings on its surface can give a directly ruled dimension on the radiograph with a normal x-ray exposure.The collimator test tool is calibrated to show misalignments to within 0.5 cm.

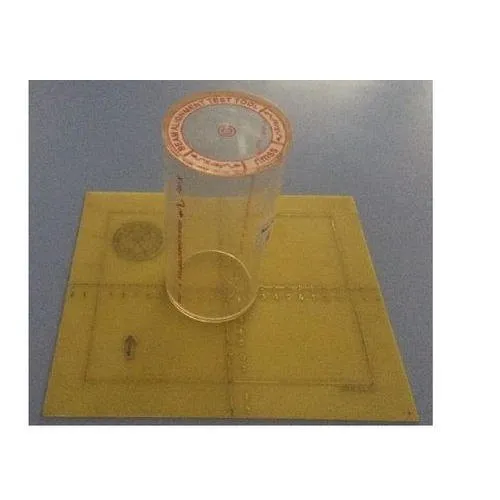

The Apt X-102 Beam Alignment Test Tool provides a simple test of the x-ray beams alignment. When usedwith the Collimator Test Tool, x-ray beam misalignments of 1.5° and 3.0° can be visualized without the need formeasuring or calculating. The test instrument is constructed of a plastic cylinder 15 cm (6 in) high with two steel balls,one at each end. The steel balls are located directly above one another so that, when level and everything is inalignment, they will be superimposed on the radiograph.
