3D Laser Metal Laser Engraving Machines
| Model Name/Number | Laser Asia M4 |
| Usage/Application | Industrial Marking on metals,Dies |
| Laser Type | Fiber Laser |
| Material | Metal |
| Operation Mode | Automatic |
| Brand | Laser Asia |
| Automation Grade | Automatic |
| Marking Speed Capacity | 12000mm/s |
| Offering laser | Cables |
| Voltage | 230 V,single phase 50Hz |
| Power Consumption | 1.5kw |
| Frequency | 50 hz |
| Marking Area | 150 x 150 mm |
| Weight | 35-45 kg |
| Cooling Technique | Air |
| Temperature | 10-45 degree |
| Speed | 6000-10000 mm/s |
| Power Supply | single phase 230V /50Hz |
| Cooling System | Air Cooling |
| Features | Heavy duty industrial metal marking |
| Marking Range Of Materials | All ferrous and nonferrous metals like SS,MS,Copper etc |
| Operating Temprature | 10-45 degree |
| I Deal In | New Only |
| Warranty | 1 Year |
| marking depth | 0.1-2 mm |
| Marking Software | Ezcad (Option available ) |
| Laser Power | 20 watt/ 30 watt/60 watt |
| Format | PLT,AL,DXF,DST,SVG,JPG etc |
| table Size | Customized |
| Minimum Order Quantity | 1 |
Feature
| Model Name/Number | Laser Asia M4 |
| Usage/Application | Industrial Marking on metals,Dies |
| Laser Type | Fiber Laser |
| Material | Metal |
| Operation Mode | Automatic |
| Brand | Laser Asia |
| Automation Grade | Automatic |
| Marking Speed Capacity | 12000mm/s |
| Offering laser | Cables |
| Voltage | 230 V,single phase 50Hz |
| Power Consumption | 1.5kw |
| Frequency | 50 hz |
| Marking Area | 150 x 150 mm |
| Weight | 35-45 kg |
| Cooling Technique | Air |
| Temperature | 10-45 degree |
| Speed | 6000-10000 mm/s |
| Power Supply | single phase 230V /50Hz |
| Cooling System | Air Cooling |
| Features | Heavy duty industrial metal marking |
| Marking Range Of Materials | All ferrous and nonferrous metals like SS,MS,Copper etc |
| Operating Temprature | 10-45 degree |
| I Deal In | New Only |
| Warranty | 1 Year |
| marking depth | 0.1-2 mm |
| Marking Software | Ezcad (Option available ) |
| Laser Power | 20 watt/ 30 watt/60 watt |
| Format | PLT,AL,DXF,DST,SVG,JPG etc |
| table Size | Customized |
| Minimum Order Quantity | 1 |

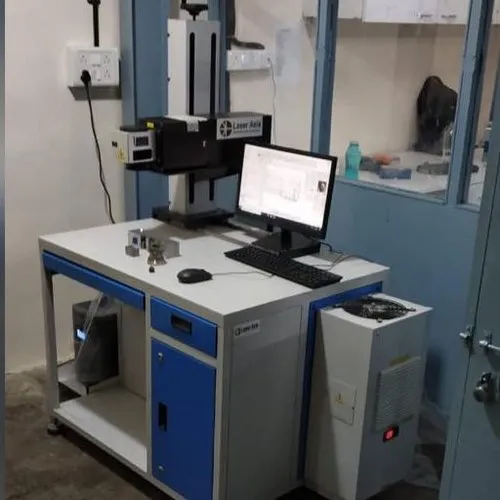

Description
Laser Asia''s Industrial Metal Marking Machine spetially design for heavy duty applications.
Specifications :
Laser Type : Fiber Laser
Wavelength : 1064 nm
Power : 30 W, 50 W , 100 watt
Frequency : 20 KHz to 200 KHz
Pulse Enrgy : 1 mj-1.5 mj
Controller and software: Euromark
Speed of Marking : Upto 12000 mm / s
Area of Marking : 50 mm X 50 mm till 300 mm X 300 mm

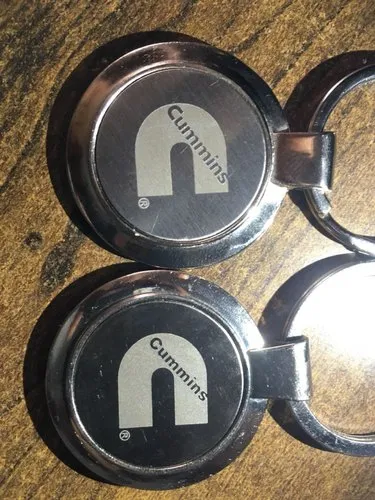

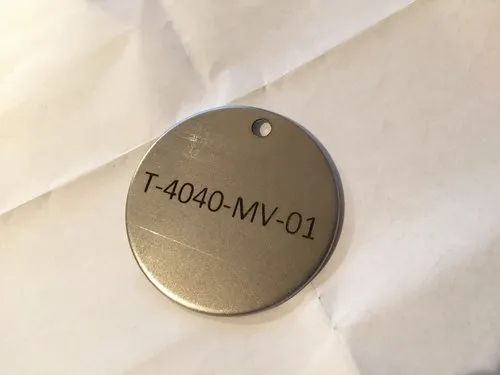

The machine is known for doing marking on all metals like Steel, Aluminium,Copper, Brass etc and some non metals.
Used for industrial applications for high speed marking and deep engraving .
Customised Machine with all new features like automatic motorised Z axis, flexible table size, rotary attachments for marking on circular and round parts, colour laser marking , auto scanning and marking feature etc.
Laser Asia Manufacturers Laser marking machine in its plant in Pune, India.
Specifications :
Laser Type : Fiber Laser 1064 nm
Laser Power : 20W/30W/50W/60W/70W/100W
Technology : Mopa Laser ( Singapore) / Q Switched Laser ( IPG Germany)
Software & Controls : EuroMark
Frequency Range : Mopa 1 KHz to 400 KHz and IPG 20 KHz to 250 KHz
Pulse Width : 80 ns to 120 ns
Pulse Energy 1.25 mj for Mopa / 1 mj for IPG
Scanner Speed : 8000 mm/s ( Normal ) / 12000 m/s ( High Speed Option)
Marking Area : 50 mm X 50 mm to 600 mm X 600mm
Options : Rotary Chuck , Class I enclosure, Rotary Indexing, Conveyor attachment , On the Fly marking, Deep marking , 3D marking
Applications : Gold Cutting , jewelry Engraving, Laser Hallmarking, Metal and non metal part marking, Gift Articles,Laser Marking Machine for marking on metal , non metal , Auto parts , Bearings, Die Molds, Castings , gifting articles like pens, business card holders, Water bottles. etc
Power Supply Requirement : Single Phase , 10 A, 50HZ
Additional Information
| Delivery Time | 2 days in stock |
| Packaging Details | Wooden Box |
