3D CAD Design And Modeling Services in pune

Havells IE3 Motors, 50, 415

MOTORSDesigned to fulfil the applications requiring high-performance levels and total reliability for a long time, the latest range of Havells 3 phase energy efficient LV induction motors include Inverter Duty Motors, Crane Duty Motors, Brake Motors, Dual Speed Motors and Smoke Ventilated Motors. With ease of installation and low cost power transmission units that drive a multitude of machine applications, Havells motors are highly energy efficient 3 phase motors and consume less power as opposed to traditional motors.

Product SpecificationPower 0.18 - 355 kW/( 0.25-470 HP)Brand HavellsPhase 3Speed 3000 (2 pole)/1500 (4 pole)/1000 (6 pole)/750 (8 pole)Voltage 415Mounting Type B3 Foot Mounted / B5 Flange Mounted / B35 Foot cum Flange MountedAmbient Temperature 50Usage/Application Pump, Fan, Compressor, Paper Machinery, Dairy Equipment, Hydraulic press, HVAC, Grinding MachineCountry of Origin Made in IndiaProduct Description3 Phase Motors with Highest dynamic performance, precision and efficiency, Voltage 415V +/- 10%, Frequency 50 Hz +/- 5%, Cast Iron Housing, Method of Cooling - IC411, IP-55, Insulation Class - ''F'', Amb. Temp-50 Deg.C. , Const. As Per IS : 1231 & 2223 / IEC : 60034-30-2008

...

Mild Steel VTL CNC Job work/ Machining Service

Vertical turning lathes (VTL) are machines that orient the spindle in the vertical plane in a fixed position. The workpiece then spins, moving up and down to put it in line with the cutting head. These machines are less complex than horizontal lathes.

...

35 mm PRO 36 Promotech - Poland Make Original Broa

ORIGINAL BROACH CUTTER IS NOW AVAILABLE IN THE NAME OF PROMOTECH.

PRO 36 Compact drilling machine:-

Core drill max 36 mm Depth of cut 51 mm
Stroke 70 mm
Speed 350 rpm
Motor Power 920 W
Weight 10 kg

The most compact machine designed by Promotech, and one of the smallest units in the world. Superior features of PRO36 include:

Ultra light weight
Gear box and slide system made of one piece
Purpose designed motor with heavy duty gear box
Maintenance friendly design
Maintenance free rail guide system

PRO 36 is equipped with the latest generation of electromagnetic energy saving base (ESB) with magnetic field shape control system (MFSC) and magnetic power adhesion control module (MPAC), which detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpiece. PRO 36 is also equipped with motor overload protection system.

Additional Information

Item Code	WRT-0440-10-20-00-0
Delivery Time	2-3 DAYS
Packaging Details	Magnetic Base Drilling Machine Metal Box Swarf Shield/Cutter Guard Coolant Bottle Assembly Safety Chain with Snap Hook Allen wrench hex s=4 Operator’s Manual (English) Standard shipping weight – 16,7 kg (36 lbs)

...

Service Location	Maharashtra
Designing	2D/3D
Software	As per client requirement
Pricing	Hour Basis
Service	Online/Offline

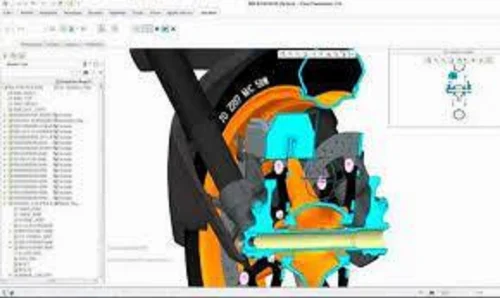

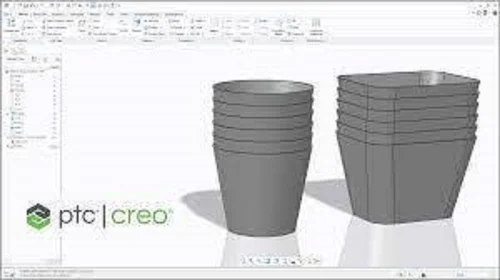

3D CAD Design And Modeling Services

Feature

Description

Related Products

Havells IE3 Motors, 50, 415

Mild Steel VTL CNC Job work/ Machining Service

35 mm PRO 36 Promotech - Poland Make Original Broa

Stainless Steel Imported Automatic Shoe Shine Mach

Overall Rating

Rating Distribution

Submit Your Review

nvensys CAD Solutions provide customers domain-based, easy to use & cost-effective solutions by providing 24x7 technical support and value-based training to reduce time to market and faster product development at a competitive cost.

As per you have downloded the BricsCAD, for 2D design, drafting and drawings. As major CAD systems are moved to subscription and user based licensing, we are pleased to offer our solutions for the perpetual license from BricsCAD - Best Alternative Tool for Autocad. We can offer solutions with the libraries for the Mechanical, Electrical, HVAC, Architectural. Please visit our website https://invensyscadsolutions.in/
