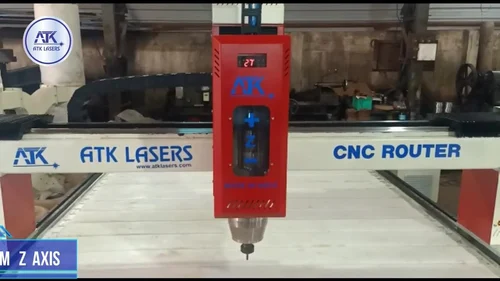

3 Axis Automatic CNC Wood Router Machine With Vacu
Model | ATK-VC-1325 |
Z Axis Working Area | 200 mm |
X-Y Axis Working Area | 1300 x 2500 mm |
Machine Type | 3 Axis |
Spindle Power | 5.5 kW |
Job Material | Wood, Foam Board, Acrylic, MDF, Plywood, PVC |
Spindle Speed | 24000 RPM |
X-Y Movement | Gear Racks |
Z Movement | Ball Screw |
Driven Motor | Servo Motor |
Machine Weight | 1200 kg |
Dimension | 2300 x 3350 x 1500 mm |
Condition | New |
Control System | DSP (USB) |
Command Code | G Code,*.u00,*.mmg,*.plt |
Power Consumption | 10 HP |
Table Structure | Partition Vacuum Absorption Working Table |
Collet Diameter | ER25 |
Maximum Working Speed | 25 m/min |
Spindle Cooling System | Water Cooled |
Country of Origin | Made in India |
Feature
Model | ATK-VC-1325 |
Z Axis Working Area | 200 mm |
X-Y Axis Working Area | 1300 x 2500 mm |
Machine Type | 3 Axis |
Spindle Power | 5.5 kW |
Job Material | Wood, Foam Board, Acrylic, MDF, Plywood, PVC |
Spindle Speed | 24000 RPM |
X-Y Movement | Gear Racks |
Z Movement | Ball Screw |
Driven Motor | Servo Motor |
Machine Weight | 1200 kg |
Dimension | 2300 x 3350 x 1500 mm |
Condition | New |
Control System | DSP (USB) |
Command Code | G Code,*.u00,*.mmg,*.plt |
Power Consumption | 10 HP |
Table Structure | Partition Vacuum Absorption Working Table |
Collet Diameter | ER25 |
Maximum Working Speed | 25 m/min |
Spindle Cooling System | Water Cooled |
Country of Origin | Made in India |
Description
- Excellent speed, efficiency, high precision CNC Router machine built in X, Y Axis drive system rack and pinion with Square linear rails achieving high positioning, motion accuracy & longer life
- Working table with Vacuum Bed ensures for longer life
- Handheld DSP controller to set job parameter and download from computer via USB cable and USB key also
- Original Indian spindle longer life and guaranteed performance
- High precision planetary servo gearbox
- High torque Easy servo motors and drives system technology.
