1.10 - 7.50 KW Electric DC Vacuum Rotary Compresso
10000
incl. GST
Other Details:

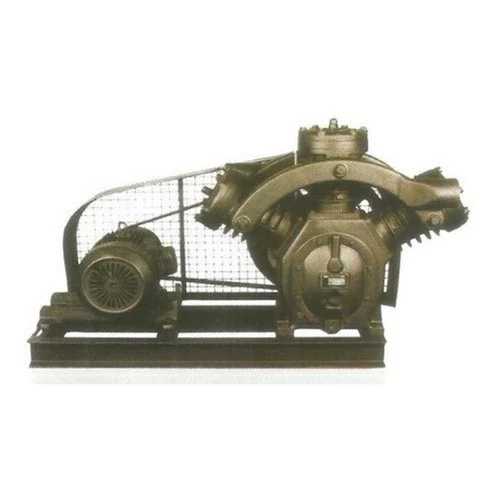

Dry Vacuum pumps are single acting, air cooled reciprocating units in single and two stage air compressor.
The piston type vacuum rotary compressor pumps achieve vacuum upto 29.0"Hg. (737 mm) for single stage and upto 29.6"Hg. (752 mm) for two stage configuration.
Vacuum rotary pump has been manufactured mostly for used in industrial demands that are a continuous single and two stage air compressors are highly affordable and completely oil free compressors.
The dry type vacuum pumps are ideal for vacuum rotary air compressor forming, paper handling, food processing, liquid transfer and several other such applications.
Price Range: Rs 10000-200000/Unit
Single & Two Stage Compressors
| Model | NO. OF CYLINDER | PISTON DISPLACEMENT | MAXIMUM PRESSURE | MOTOR | ||||
| CFM | M3/HR | LPM | PSIG | KG/CM2 | HP | KW | ||
| 285V | 2 | 21.60 | 36.66 | 611 | 29.00 | 737 | 1.50 | 1.10 |
| 285VT | 2 | 10.80 | 18.33 | 306 | 29.60 | 752 | 4.50 | 1.10 |
| 294V | 2 | 34.60 | 58.72 | 979 | 29.00 | 737 | 2.00 | 1.50 |
| 294VT | 2 | 17.30 | 29.36 | 490 | 29.60 | 752 | 2.00 | 1.50 |
| 305V | 2 | 60.00 | 101.82 | 1698 | 29.00 | 737 | 5.00 | 3.70 |
| 305VT | 2 | 30.00 | 50.91 | 849 | 29.60 | 752 | 5.00 | 3.70 |
| 57V | 2 | 110.00 | 186.67 | 3113 | 29.00 | 737 | 7.50 | 5.50 |
| 57VT | 2 | 55.00 | 93.34 | 1556 | 29.60 | 752 | 7.50 | 5.50 |
| 65V | 3 | 148.50 | 252.00 | 4203 | 29.00 | 737 | 10.00 | 7.50 |
| 65VT | 3 | 99.00 | 168.00 | 2802 | 29.60 | 752 | 10.00 | 7.50 |
